Snozzle

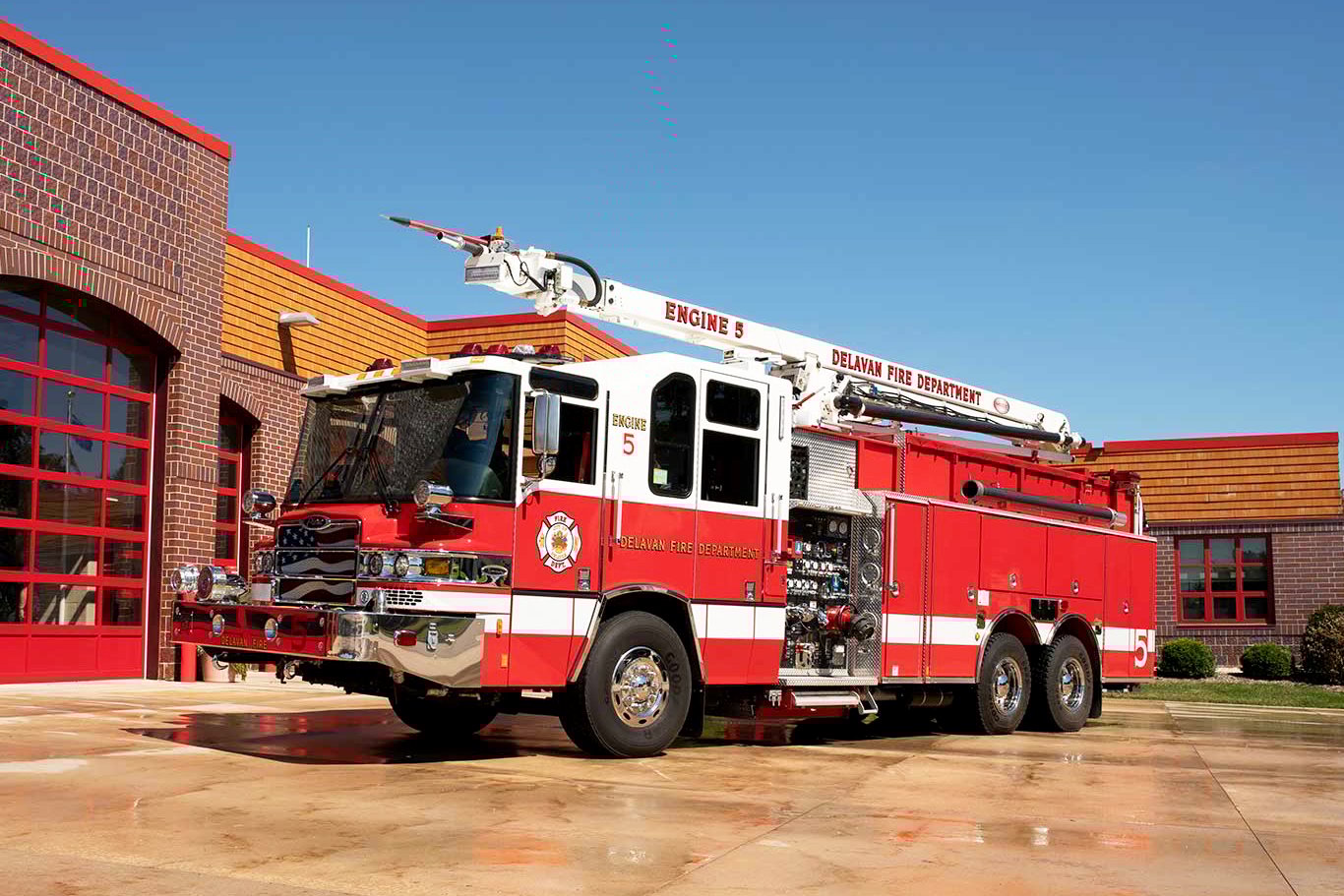

Pierce Fire Truck parked outside on a sunny day in front of a Fire Station with the High-Reach Snozzle extended out in front of the apparatus.

High-Reach Extendable Turret

Advancing elevated waterway response with its compact yet capable design.

SNOZZLE BROCHURE

Overview

Pierce Fire Truck parked outside on a sunny day in front of a Fire Station with the High-Reach Snozzle extended in the air in front of the apparatus.

The Pierce Snozzle advances elevated waterway response with a compact yet capable design. Its lightweight, small profile pedestal maximizes available storage, while its piercing nozzle, high flow discharge, 360-degree rotation and optional dry chemical secondary agent multiply firefighting performance.

The Snozzle ratchets up response on short wheelbase chassis, offering quick setup and streamlined, high-reach operation – backed by the best-in-class service and support you expect from Pierce.

Features

Pierce Fire Truck parked outside on a sunny day in front of a Fire Station with the High-Reach Snozzle extended out in front of the apparatus.
  • Simple setup & operation
  • Steel base, turntable with ring gear
  • Telescoping & articulating boom
  • 360° rotation
  • Below grade operation with HS1
  • Up & over capabilities
  • Compact boom end fits through/inside windows & doorways
  • High tensile steel lower & upper outer boom
  • Aluminum 1-piece upper inner boom

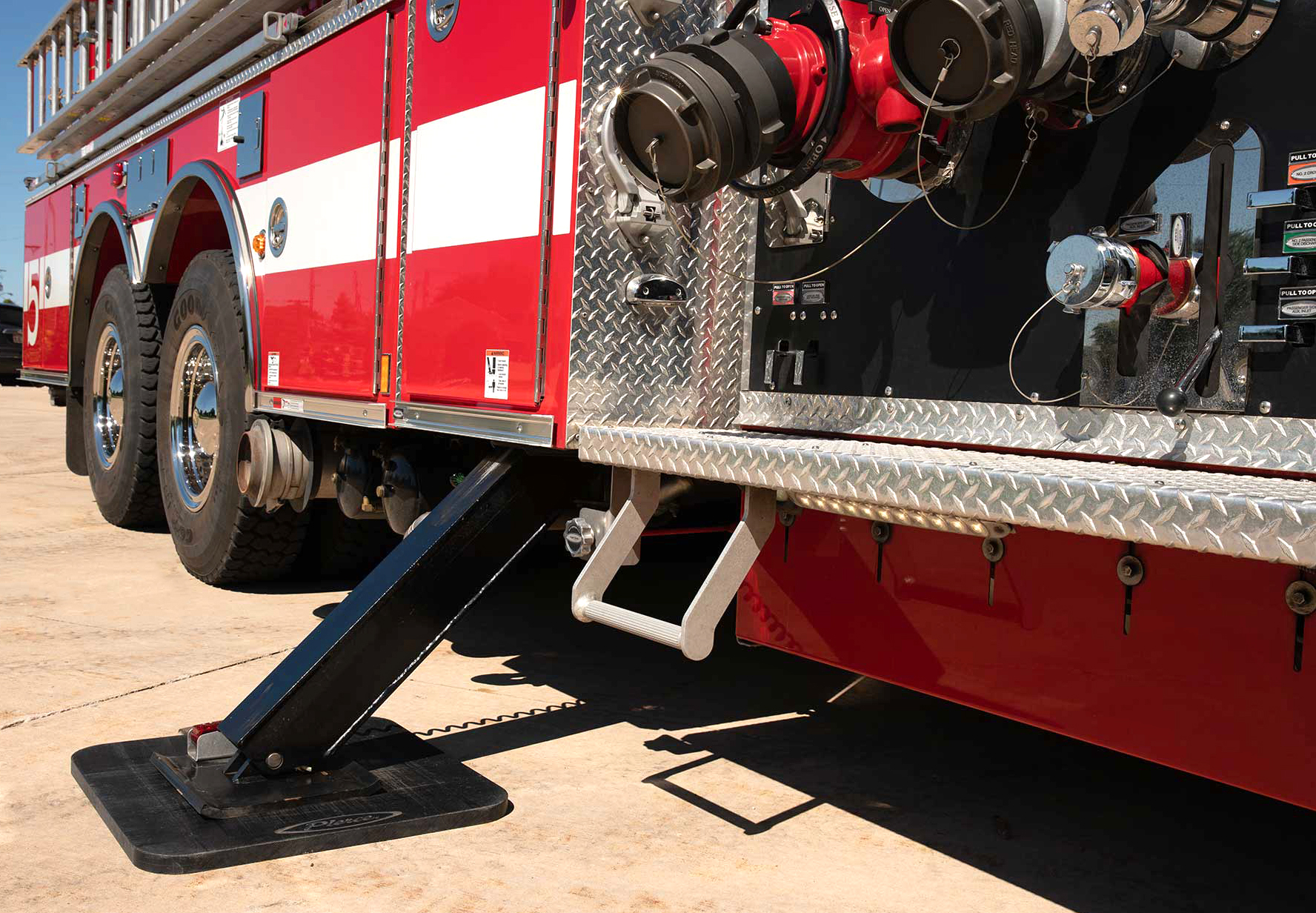

  • 11' stabilizer spread

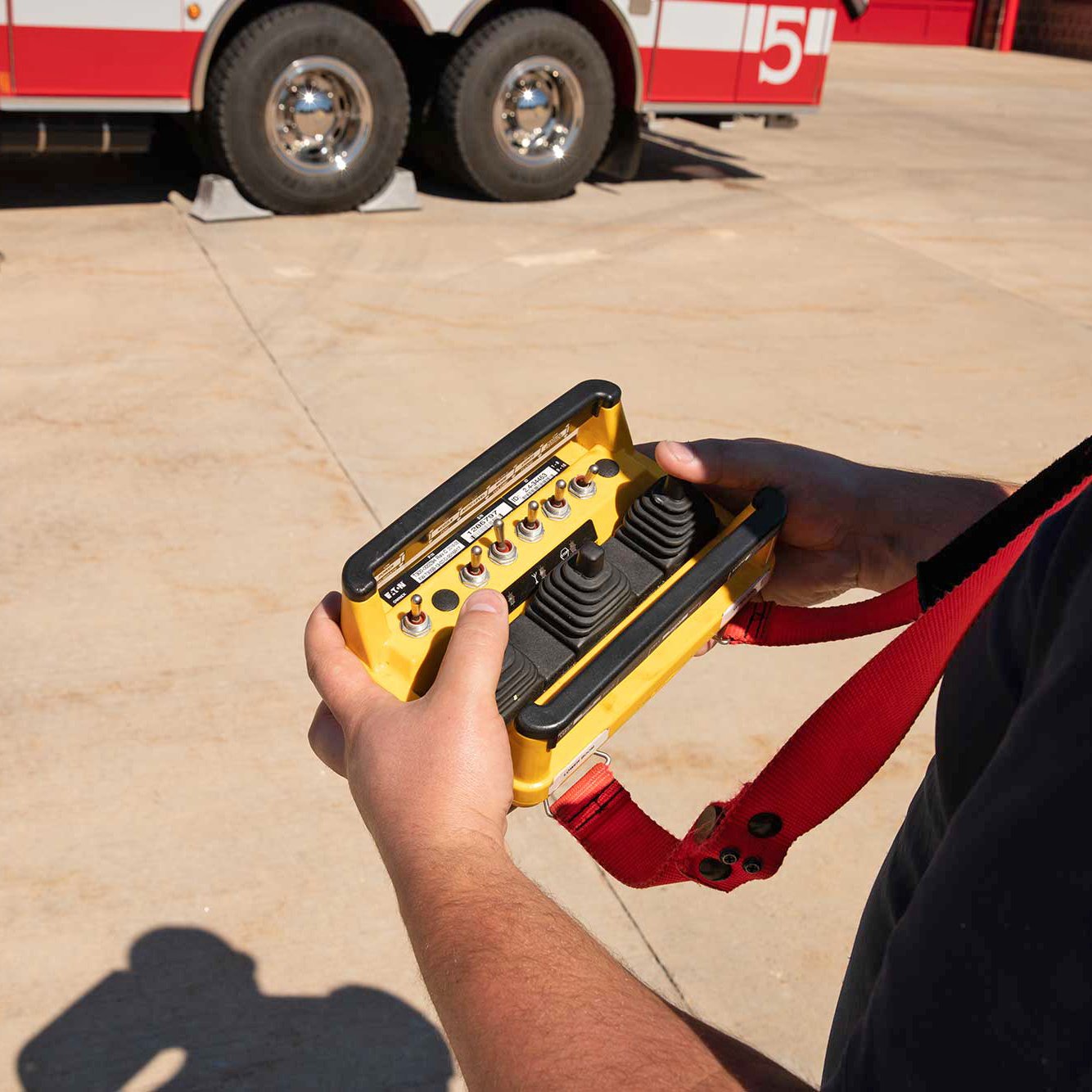

  • Wireless remote control

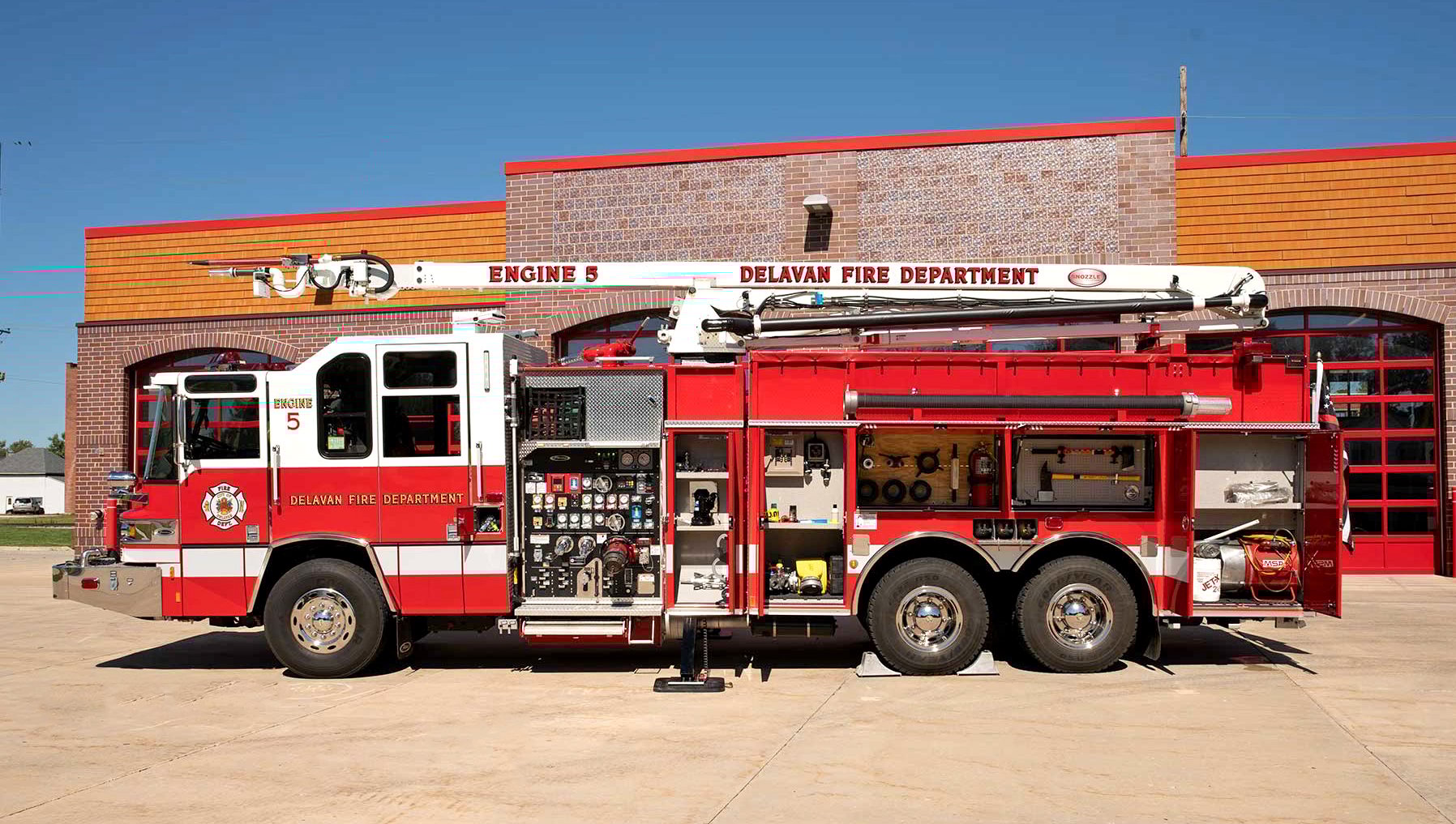

  • Direct mounting with no torque box increases space for storage
  • Can serve as an elevated stand pipe

Options

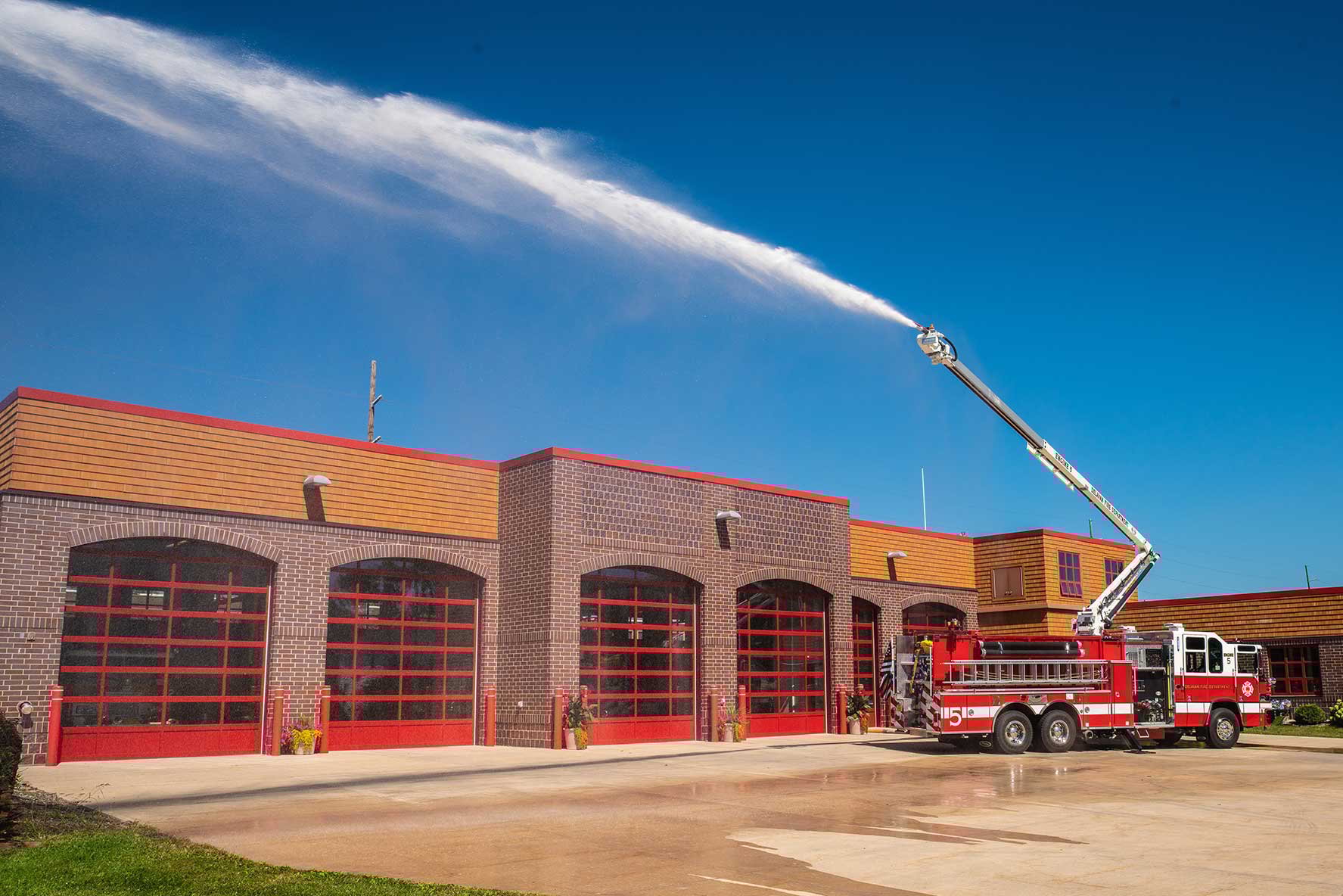

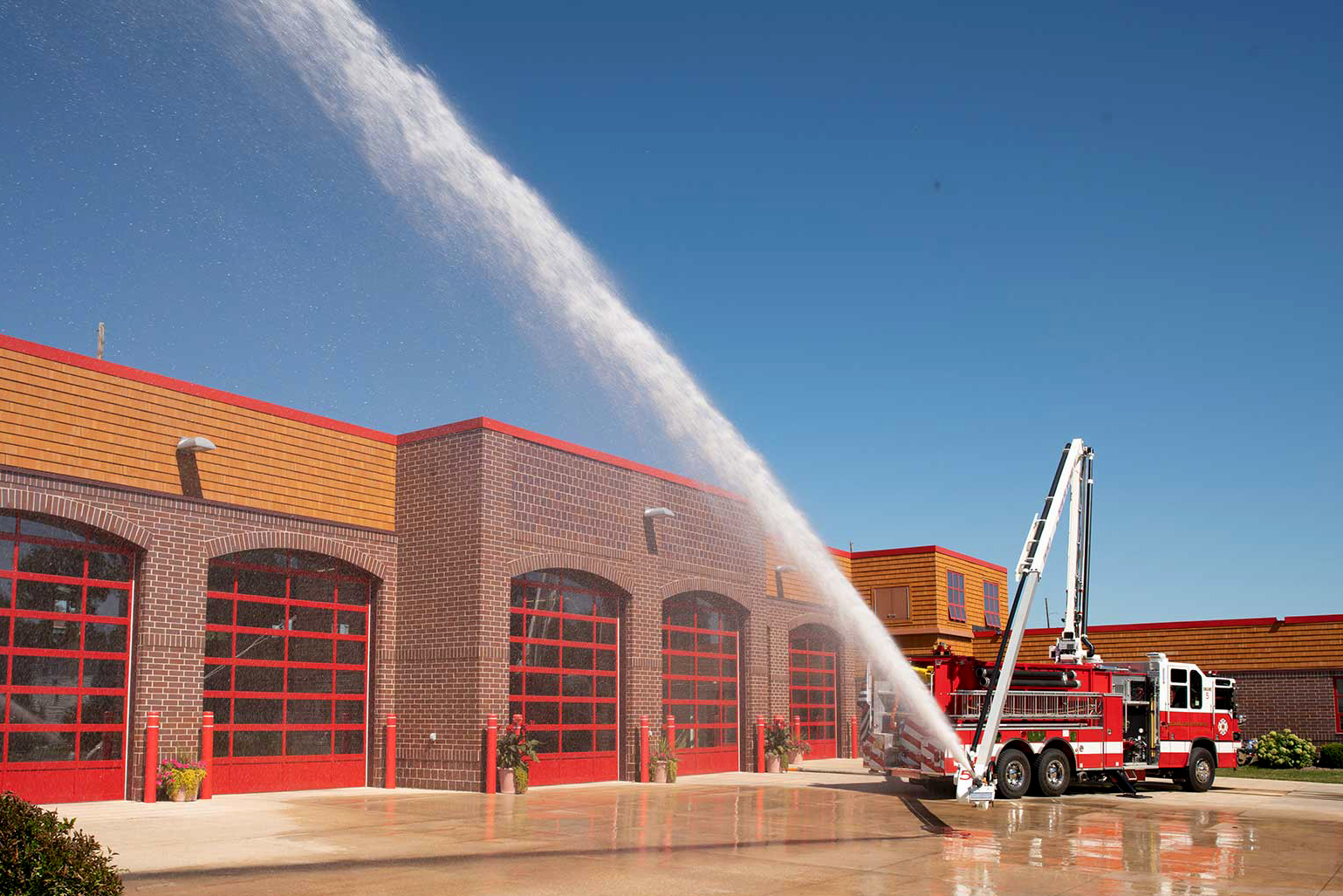

Pierce Fire Truck parked outside on a sunny day in front of a Fire Station with the High-Reach Snozzle extended out in front of the truck spraying water into the air.

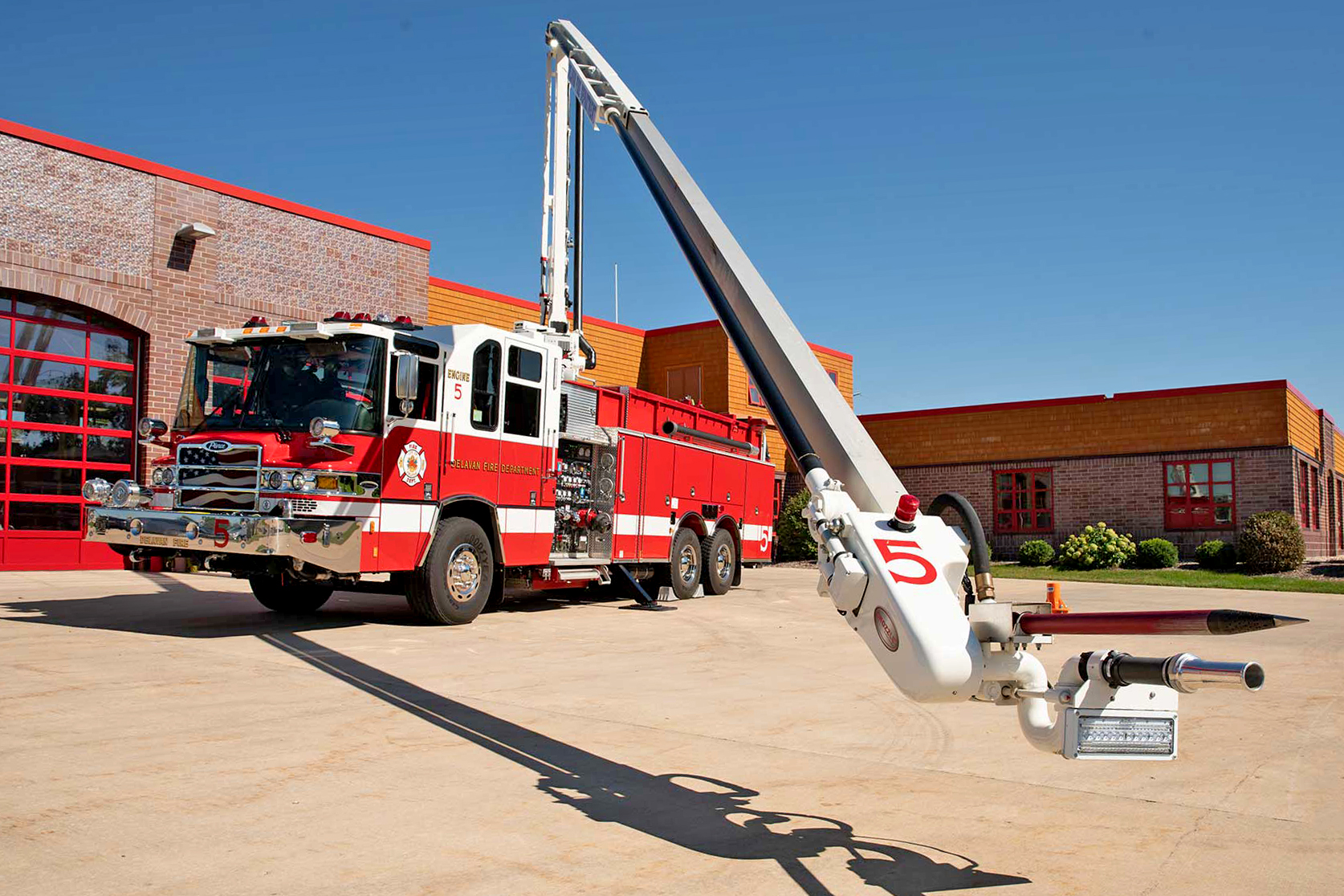

  • Piercing nozzle
    • 250 gpm
    • 40' diameter full body spray pattern

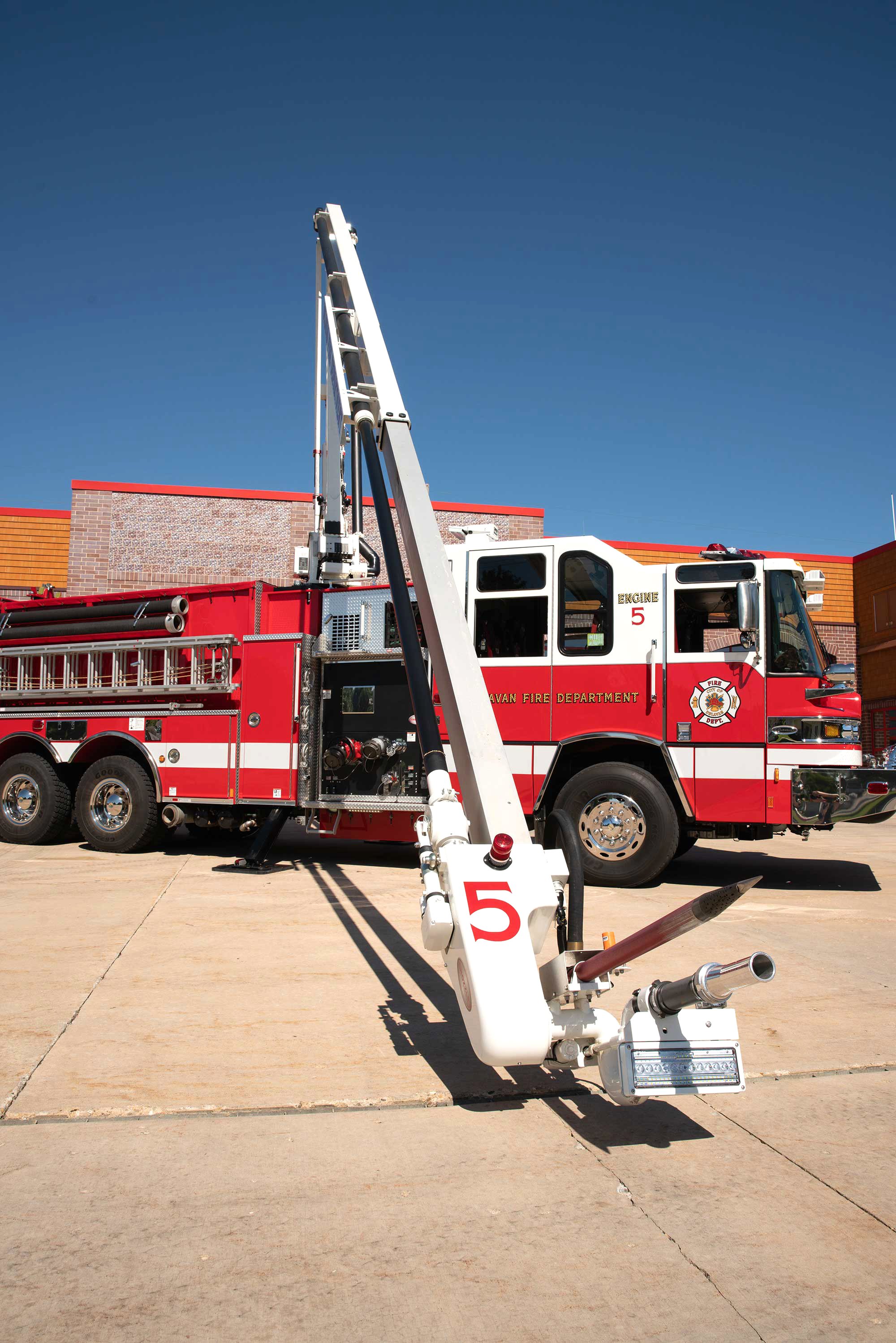

    • 36" piercing depth
    • 12" extension can increase piercing depth up to 48"
    • Auto level feature
  • Up to 1,250 3.25" gpm waterway & nozzle
  • Dry chemical discharge with Williams Hydrochem nozzle; dry chemical discharge rate of 20 lb per second
  • Thermal cameras mounted on boom end/piercing tip
  • Lighting options on boom end
    • LED style
    • HID style
    • Spot or flood
  • Waterway winterization
  • Proportional boom speed control
  • Automatic collision avoidance to prevent cab & body contact during operation

Specifications

Design

Custom Chassis Choices

Impel®, Velocity®

Stabilizers

2 A-style

Performance

Pump Range

Waterous, Hale, Darley Midship & PTO

Rotation
360-degrees
Tank
Up to 1500 gallons
Vertical Reach
50' or 65'
Remote Control Operation
Up to 400' range

Proprietary Options

Foam Systems
Pump
Suspension

Warranties

Body
10-yr
Structural Ladder
10-yr
