January 2019

Ascendant_100'_Tower

Pierce® Ascendant® 100’

Heavy-Duty Aerial Tower

Gallery

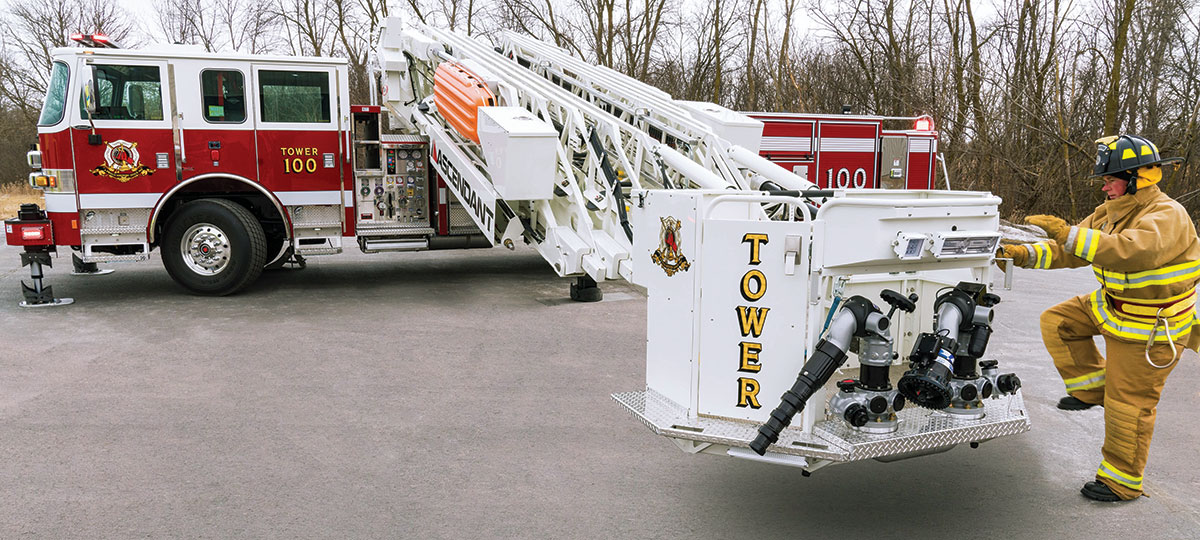

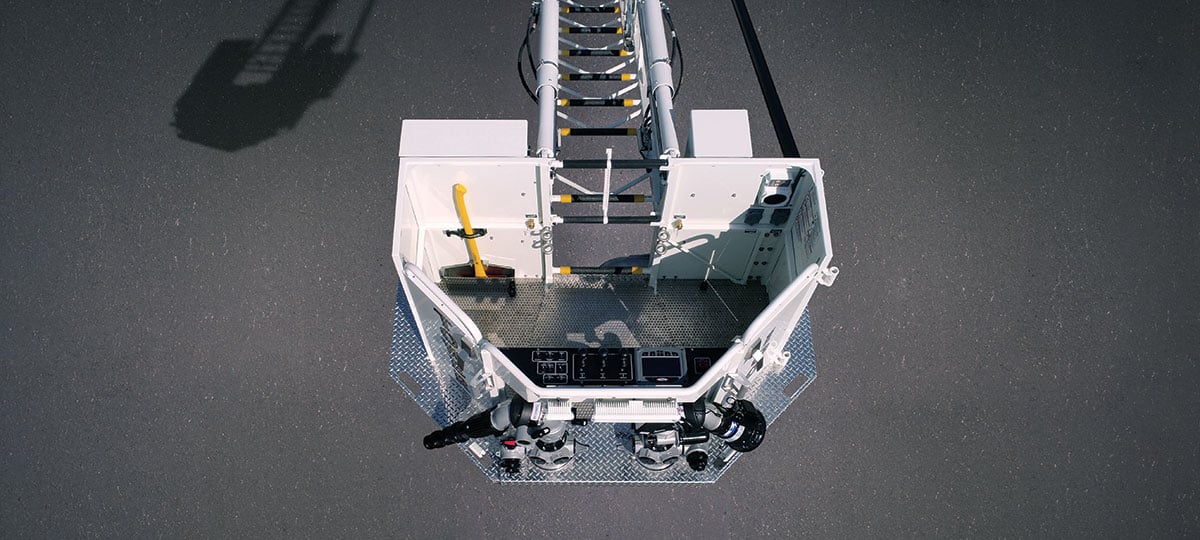

  • Ascendant_100'_Tower-Basket

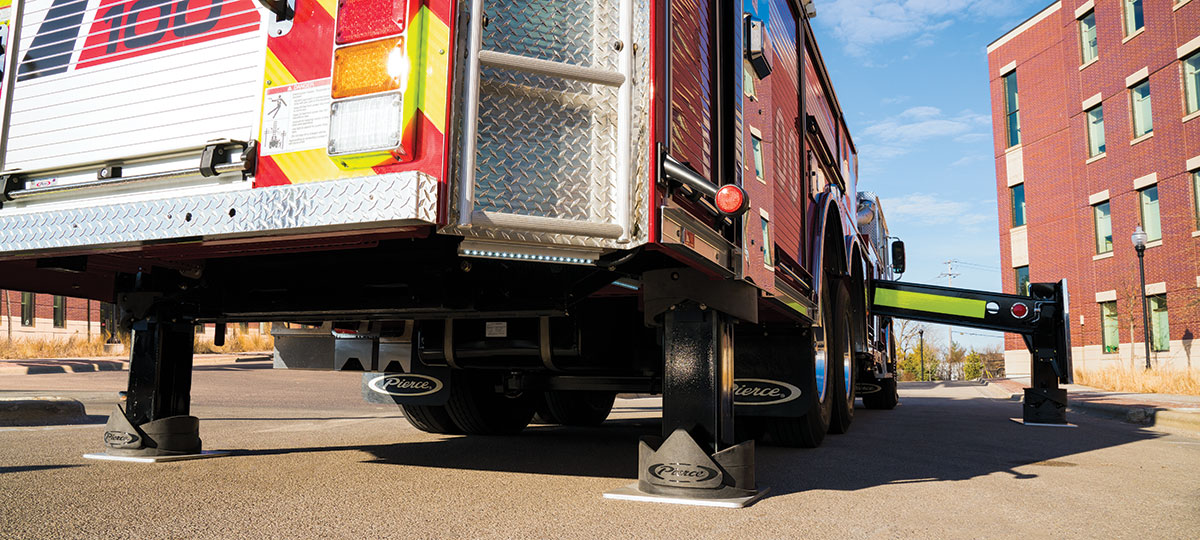

  • Ascendant_100'_Tower_Outrigger
  • Ascendant_100'_Tower-BelowGrade
  • Ascendant_100'_Tower-HorizontalReach
  • Ascendant_100'_Tower-Visibility

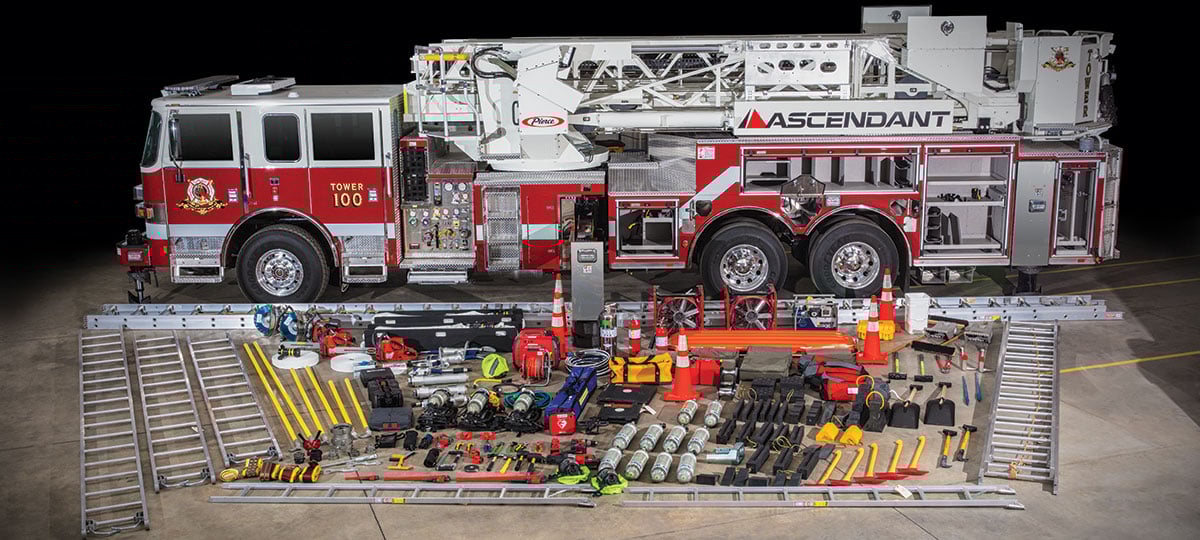

  • Ascendant_100'_Tower-Compartments
  • Ascendant_100'_Tower

Specifications

Custom Chassis Choices

Arrow XTTM, Velocity®

Body

100' Ascendant® Heavy-Duty Aerial Tower

Vertical Reach

100'

Horizontal Reach

93'

Operating Range

-20° to 77°

Payload Capacity

1,000 lb dry/ 500 lb wet

Wind & Ice Ratings

Up to 35 mph winds & 1/4" of ice



Flow Capacity

2,000 gpm

Stabilizers

1 set of H-style & 4 downriggers

Stabilizer Spread

18'

Rear Axle

Tandem

Tank

Up to 300 gallons

Pump Range

Waterous, Hale, Darley Midship

Hosebed Capacity

800' of 5"

Ladder Complement

Minimum of 170'

Vehicle Configurations

Quint, No Pump No Tank - a true truck company configuration

Pierce Ascendant Heavy-Duty Aerial

“From the ground up, the new Ascendant Tower has been engineered with one focus in mind: maximum performance. From the integrated ground pads to the tip of the 100’ tower, and everything in between, all the features of this vehicle allow firefighters to spend more time operating at the scene as opposed to getting there.”

JUSTEN JANZ,
NEW PRODUCT DEVELOPMENT ENGINGEER, PIERCE MANUFACTURING

Exclusive Pierce Features
