100' Aluminum Platform

Pierce 100 Aluminum Platform Header

Reach high. Reach low. Even at extended angles.



Overview

Pierce 100' Aluminum Platform Basket Flowing

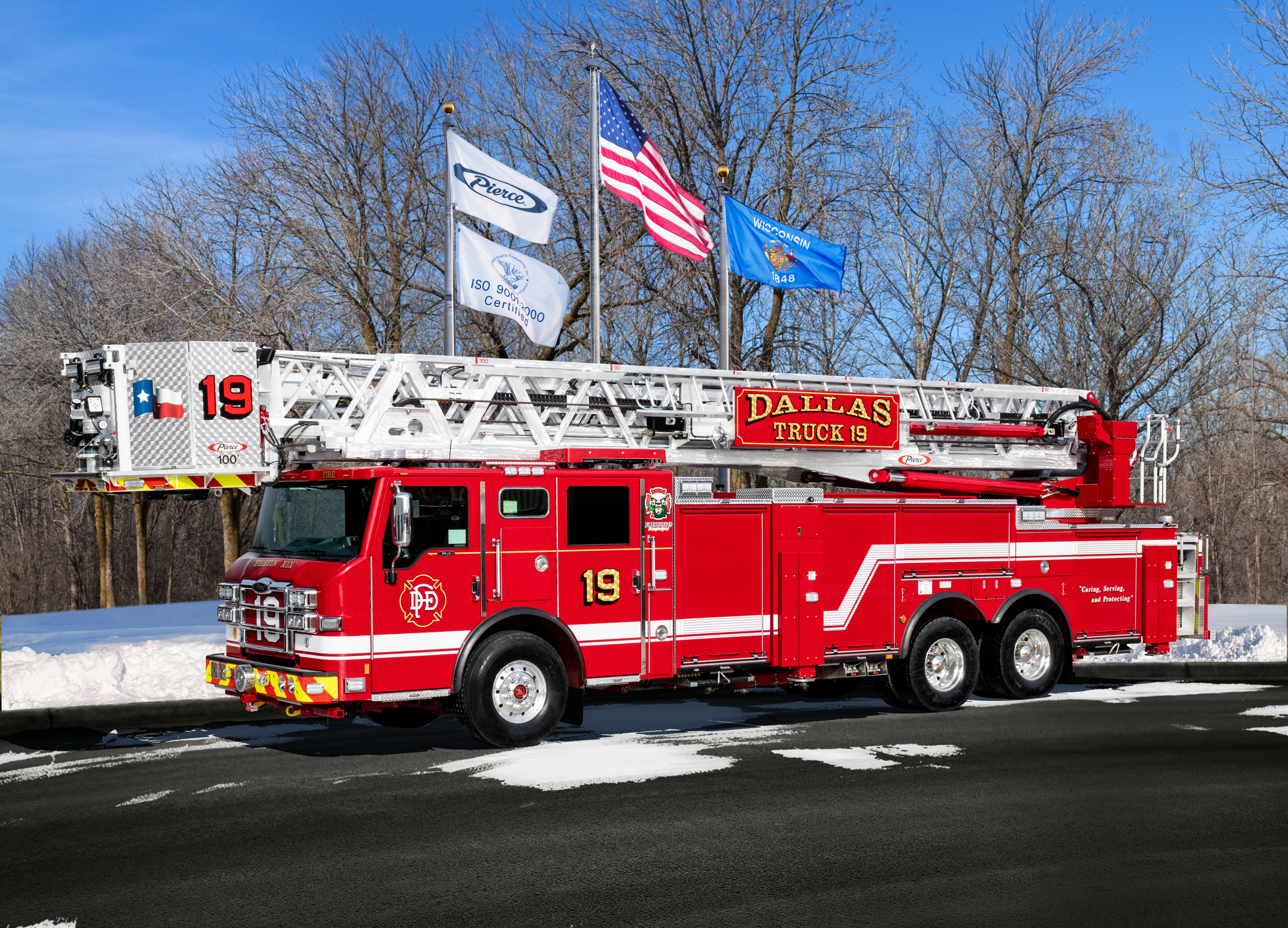

Reserved for those who demand the ultimate in below grade operation and setup adaptability, the Pierce rear-mount 100' aluminum platform lets you access the basket without extending the device. It has an impressive rotation of 235 degrees at -11.5 degrees below ground level. With greater sweep capabilities, precise control from Pierce Command Zone™ advanced electronics, and overall maneuverability, Pierce rear-mount aluminum platforms simplify getting to the scene and back again.

The Pierce aluminum platform basket features an ergonomic design for easier access and operation with angled doors, an 8" walkway on the sides, and moveable controls. The basket is available with single or dual monitors and a full complement of Lyfeline™ exclusive accessories mounted on the front side of the basket, thus freeing space inside.

Specifications

Design

Basket18 sq ft Custom ChassisArrow XT™, Dash® CF, Quantum®, Velocity®
Rear AxleTandem Stabilizer Spread16'6"
Stabilizers2 sets of H-style Structural Ladder Warranty 20-yr

Performance

Flow Capacity2,000 gpm Hosebed Capacity1,000' of 5" hose
Ladder ComplementMinimum of 115' Ladder Reach100' Vertical / 92' Horizontal
Operating Range-11.5° to 76° Payload CapacityUp to 1,000 lb dry / 500 lb wet
Pump RangeWaterous, Hale, Darley Midship, PTO TankUp to 500 gallons
Wind & Ice RatingsUp to 35 mph winds & 1/4" of ice

Proprietary Options

Electrical Command Zone™
Foam Systems HERCULES™ CAFS
Husky™ Industrial
Husky™ 12
Husky™ 3
Pump PUC™
Suspension TAK-4® Independent Front Suspension
