75' Heavy-Duty Aluminum Aerial Ladder

Pierce 75' Heavy-Duty Aluminum Aerial Ladder Fire Truck

High performance on a single rear axle with a short wheelbase.

AERIALS COMPARISON BROCHURE

Overview

Pierce 75' Heavy-Duty Aluminum Aerial Ladder Fire Truck Extended

The Pierce 75' heavy-duty aluminum aerial ladder is designed with high-strength aluminum extrusions resulting in an extremely durable ladder. Get an impressive 750 lb dry tip load rating capable of flowing up to 1,500 gpm. You can add up to 100 lb of additional firefighting equipment at the tip without reducing the rated load capacity. Besides its impressive tip load rating, the 75' heavy-duty aluminum aerial ladder has a 2.5:1 structural safety factor, a 35 mph wind load rating and can operate with up to .25" of ice buildup.

The ladder features a removable egress, making it easy to repair if it is ever damaged without having to replace the entire fly section. The single set of H-style stabilizers allows for quicker and easier setup. Using a third-party, every Pierce aerial is certified to the stringent UL Type I requirements.

Specifications

Design

Custom ChassisArrow XT™, Dash® CF, Enforcer™, Impel®, Quantum®, Velocity® Rear AxleSingle
Stabilizer Spread16' Stabilizers1 set of H-style
Structural Ladder Warranty 20-yr

Performance

Flow Capacity1,500 gpm Hosebed Capacity1,000' of 5" hose
Ladder ComplementMinimum of 115' Ladder Reach75' Vertical / 67'9" Horizontal
Operating Range-8° to 76° Payload CapacityUp to 750 lb dry / 500 lb wet
Pump RangeWaterous, Hale, Darley Midship, PTO TankUp to 500 gallons
Wind & Ice RatingsUp to 35 mph winds & 1/4" of ice

Proprietary Options

Foam Systems HERCULES™ CAFS
Husky™ 12
Husky™ 3
Pump PUC™
Suspension TAK-4® Independent Front Suspension

New Deliveries

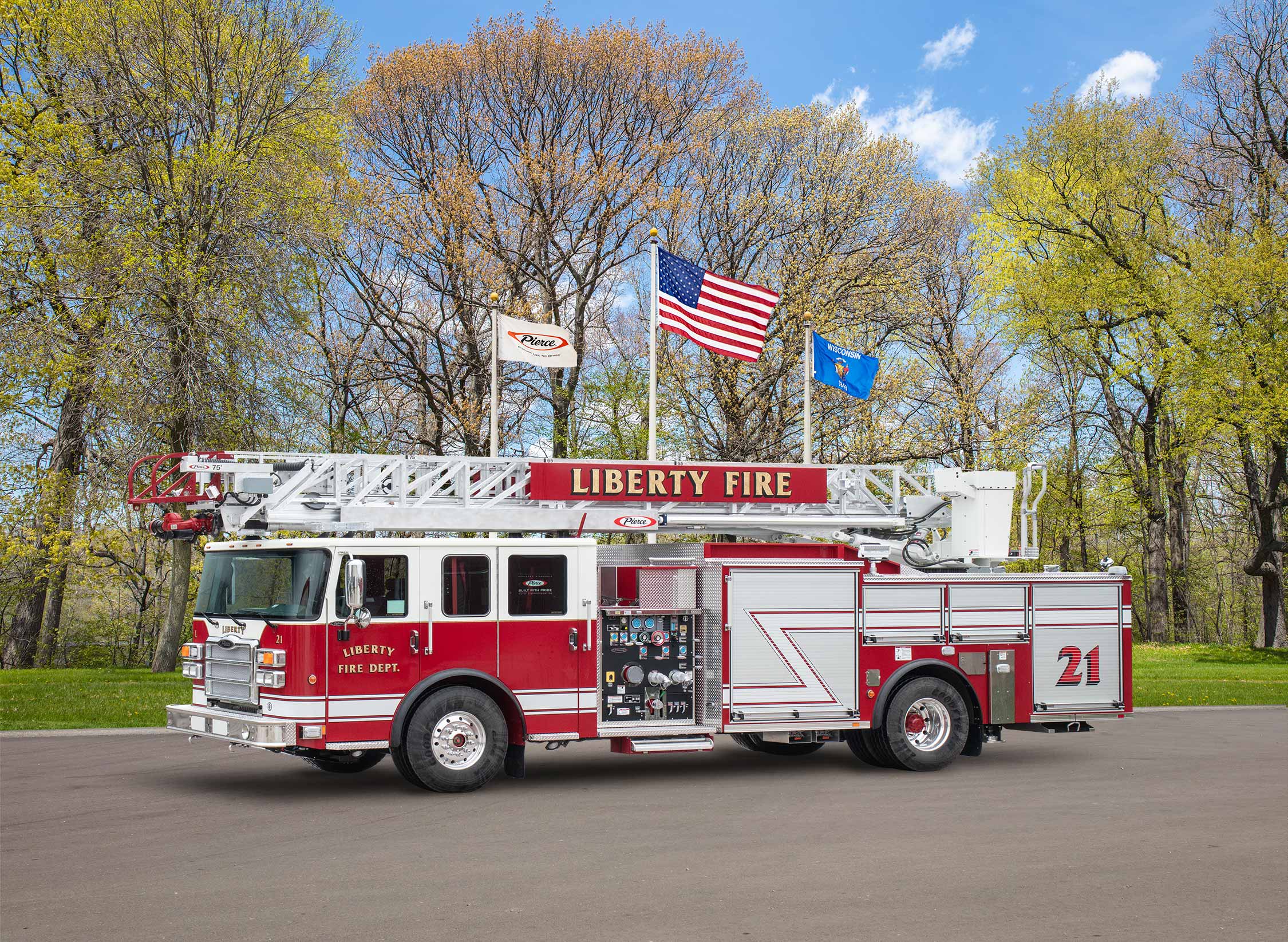

Liberty Fire Department - Aerial

Liberty Fire Department - Aerial

Delivery Date: April 30, 2020
Job Number: 34232
Sales Organization: Siddons-Martin Emergency Group
