Visibility & Space
The large, single-piece, bonded windshield & daylight windows increase visibility; the 3-blade wiper system provides better coverage of the panoramic windshield surface.

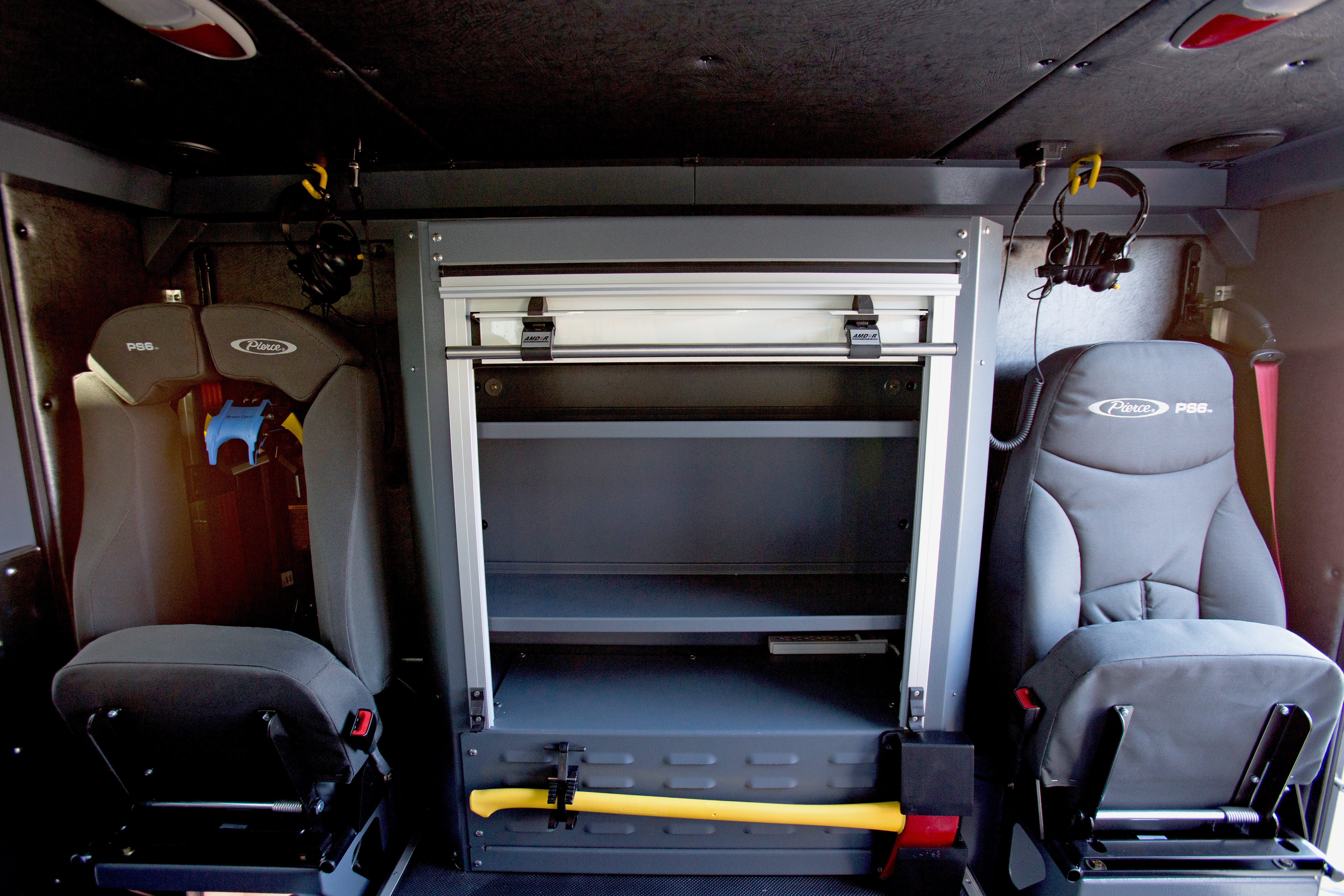

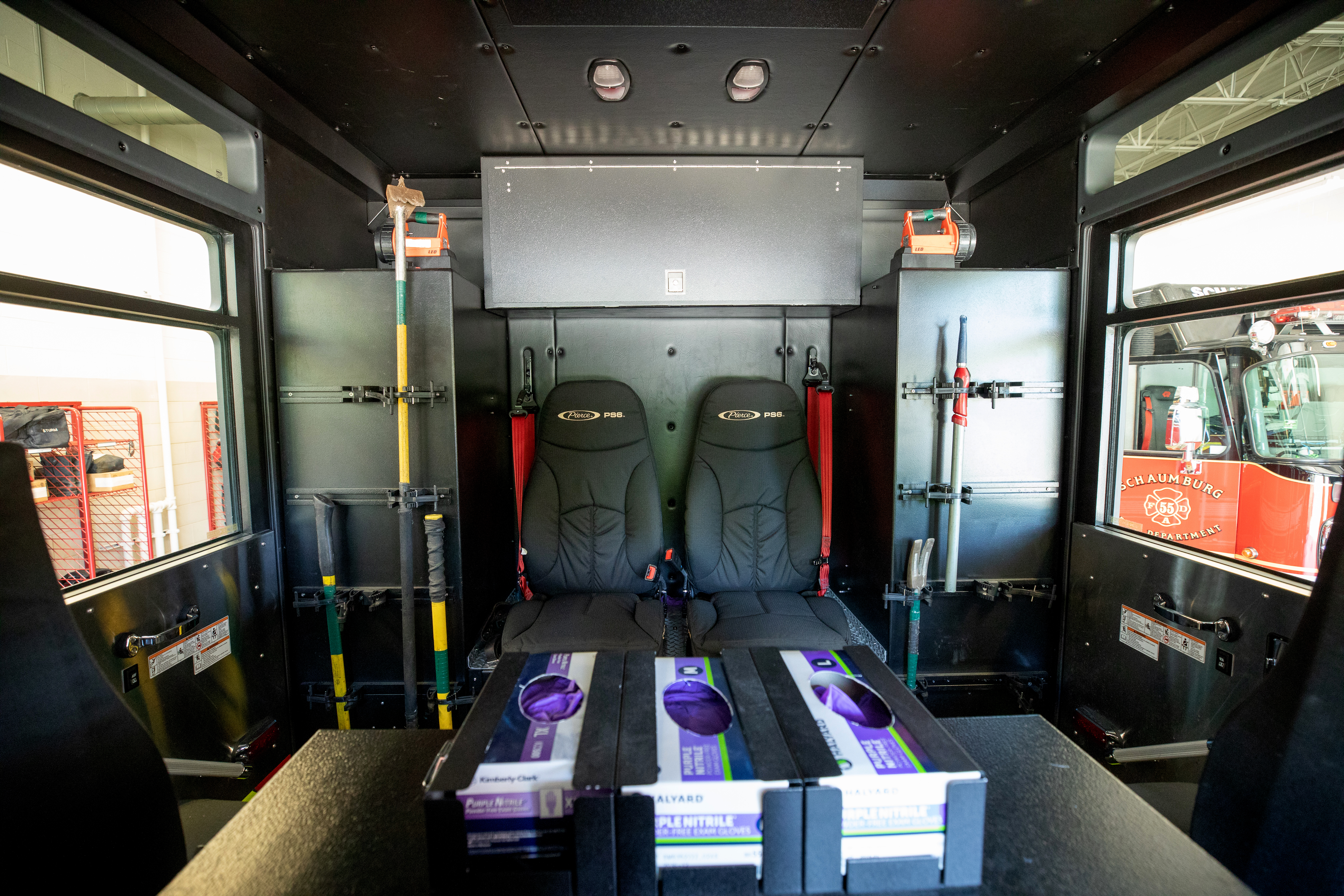

At 100” wide, the Velocity cab provides ample room to carry up to 10 personnel comfortably or additional compartments & equipment.
The forward roof design offers a cathedral-feel ceiling with increased frontal visibility & more configurable space.
Large exterior door handles are generously sized to fit the firefighter’s gloved hands.
Wide cab doors make entry safer & exit quicker for firefighters.

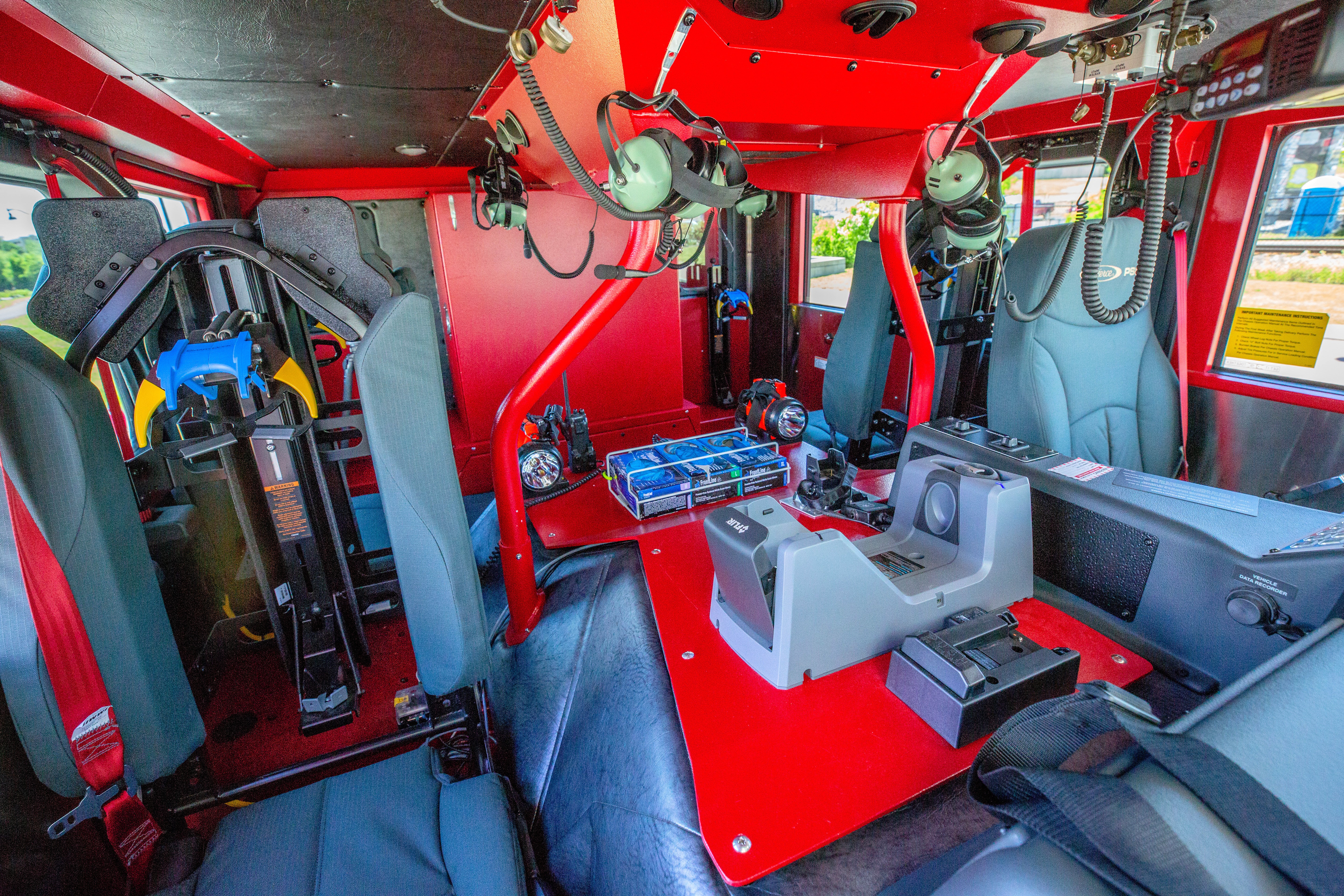

Gauges & switches are within easy reach of the driver without interrupting lines of sight.
1-piece, full width, lift-up hood allows for easy maintenance & fast access to the windshield washer fluid, coolant overflow, power steering, windshield wiper motor & cab lift controls.
Electrical systems, breakers, components & modules are easy to access & service on the officer’s side of cab.
In-cab access for chassis fluids makes servicing easier.
Massive 13.38” 120 psi steel frame rails for superior handling & reduced frame deflection.
370 - 605 hp
Length 60", 70" or 84" / Width 100"
Cab Roof Style
Flat or raised (10" or 20")
|Cab Dimensions||Length 60", 70" or 84" / Width 100"||Cab Roof Style||Flat or raised (10" or 20")|
|Doors||Barrier or full height||Electrical System||Command Zone™|
|Frame Rail||13-3/8"||Front Axle Suspension||Leaf or TAK-4®|
|Frontal Air Bags||Default||Rear Axle Suspension||Leaf, rubber, air, TAK-4®, or TAK-4 T3™; single or tandem|
|Seating Capacity||10||Side Roll Protection||Default|
|Alternator||270 - 430 amp||Cramp Angle (maximum)||45°|
|Engine||Cummins X15, X12, L9 or PACCAR MX-13||Engine Horsepower||370 - 605 hp|
|Front GAWR (maximum)||24,000 lb||Rear GAWR (maximum)||60,000 lb|
|Transmission||Allison 3000 EVS, 4000 EVS or 4500 EVS|
TAK-4® Independent Front Suspension
TAK-4® Independent Rear Suspension
Wide cab doors & large door handles
Wide cab doors make entry safer and exit quicker and more efficient for firefighters. Wide cab doors make entry safer and exit quicker and more efficient for firefighters. Large exterior door handles are generously sized to fit the firefighter’s gloved hands.
Lift & tow front bumper
Lift and tow mounts are placed at a standard location for tow truck lift systems.
Pierce’s One-Eleven mirrors
Mirrors are positioned to minimize both the body and head movements of the driver and increase visibility around the vehicle.
Forward roof design
The forward roof design offers a cathedral feel ceiling with increased frontal visibility and more configurable space.
Fast access service tilt hood
One-piece, full width, lift-up hood allows for easy maintenance and fast access to the windshield washer fluid, coolant overflow, power steering, windshield wiper motor and cab lift controls.
The large, single-piece, bonded windshield and daylight windows increase visibility. The three-blade wiper system provides better coverage of the panoramic windshield surface.

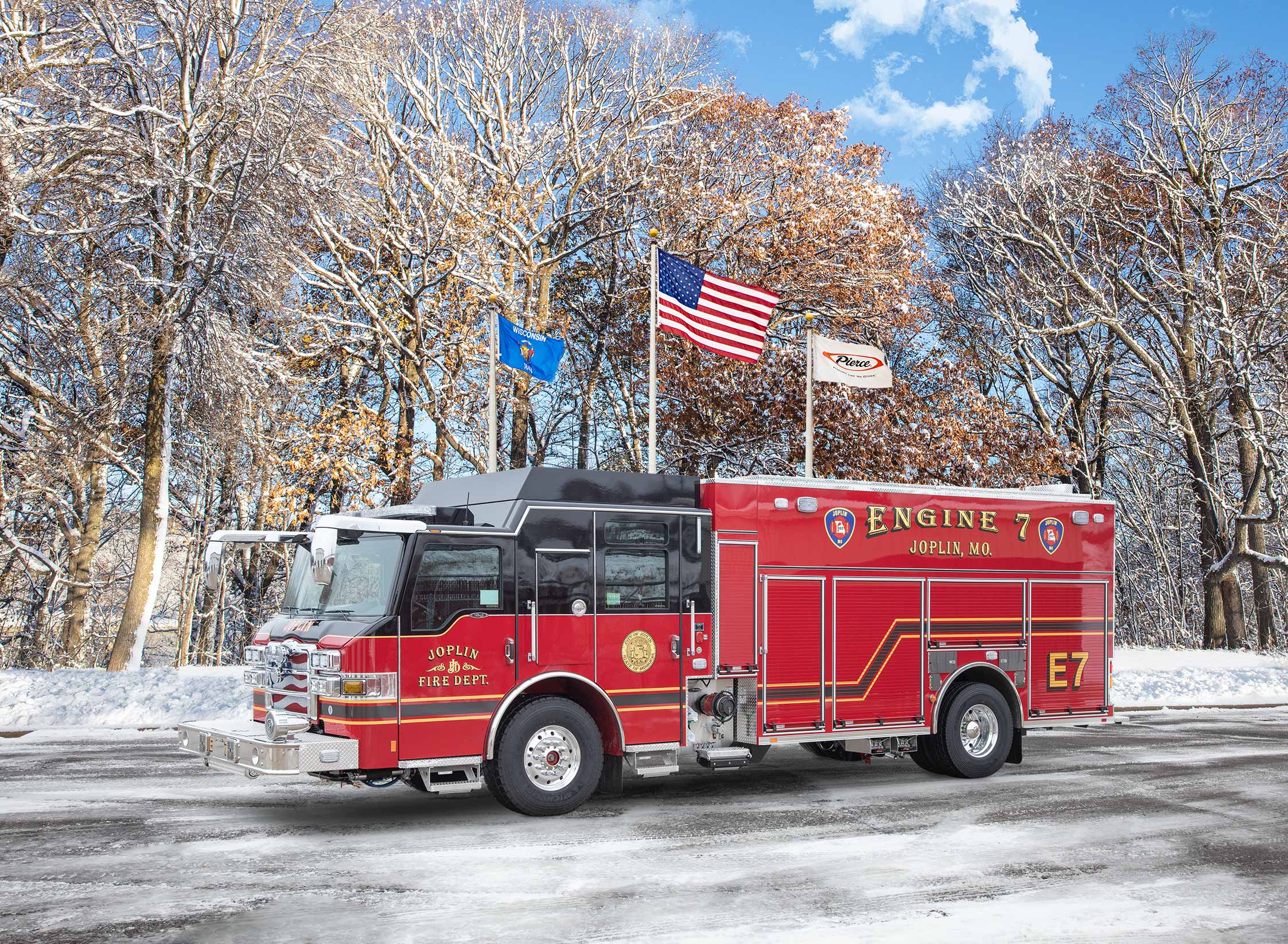

Joplin Fire Department - Pumper
Delivery Date: March 8, 2023
Job Number: 37925
Sales Organization: MacQueen Emergency
