BX™ Wildland

Pierce BX™ Wildland Fire Truck Pumper parked outside near trees.

Surprisingly spacious and well equipped. Critically rugged and compact.



Officer’s side of a Pierce BX™ Wildland Fire Truck parked outside near trees on a sunny day.

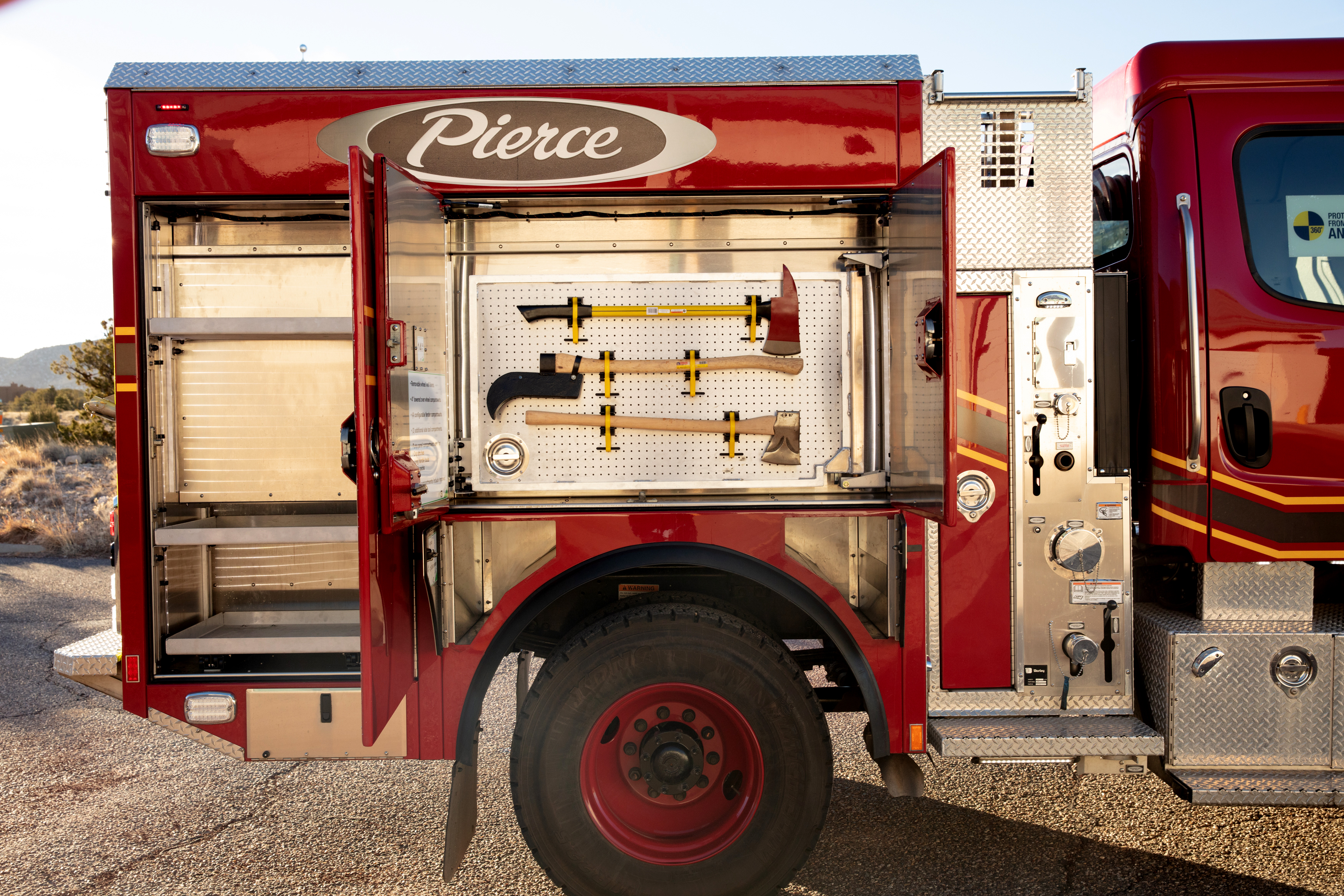

Top Pierce features and space-saving design come standard on the new mission-critical BX™ Wildland. The air ride cab comfortably fits 5 personnel. The stainless-steel body integrates full-depth left side compartments, 6 standard fender compartments, lowered compartment doors for better ergonomics and large undercab compartments. Departments can expect aluminum hosebed covers, integrated hatch compartments with top and rear access, flush-mounted hinged body doors, fully enclosed low height ladder storage and dedicated dry storage areas for more extensive deployment.

Standards include a 70-gallon fuel tank, bumper extension with left/right/center hose trays featuring aluminum lids, 2 bumper outlets, a hydraulic auxiliary pump for true pump-and-roll and a powerful Husky™ foam system with hose reel.

Beyond the ergonomic ladder storage, the BX™ Wildland deadlay is recess-mounted in the front pump module. Its rear plumbing connections have low connection points to keep firefighters on the ground, which prevents injuries from climbing on and off the truck to interface with controls.



Body Material
304L stainless steel
Body Length
101" standard
Body Width
98" standard
4 Door
Commercial Chassis
Freightliner M2-106, International HV
Compartment Space
Up to 119 cu ft
Structural Body Warranty
Usable Compartment Depth

Left: 23.5"

Right: 11.5" upper, 23.5" lower


300 - 325 amp
Compartment Load Rating
Up to 500 lb each
Cummins B6.7
Engine Horsepower
B6.7 to 360
Foam Capacities
Up to 20 gallons
Front GAWR
12,000 - 13,000 lb
23,000 lb
Pump Range
500 gpm or 1,000 gpm, PTO-driven
500 gallons/ lifetime warranty
Allison 3,000 EVS

Chassis & Electrical

Multiplexed electrical system

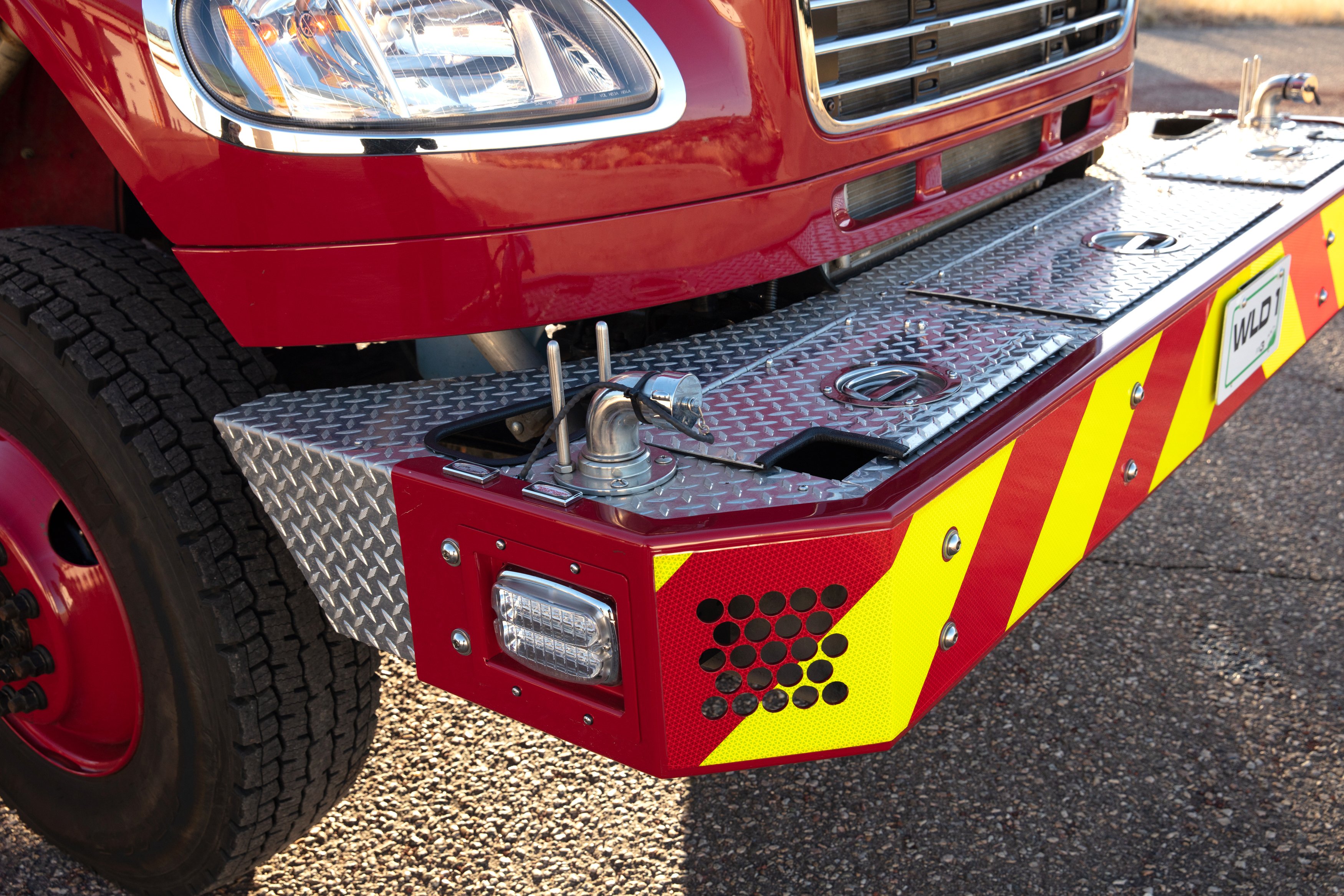

16” bumper extension

LS/RS hose trays for 50’ of 1.75” hose

Center tray for 75’ of 1.75” hose

Protected valve placement

(2) 1.5” discharges

LS brass compartment under crew cab

RS compartment or hose reel under crew cab

25°-FTL / 30°-INT angle of approach

Fire Suppression

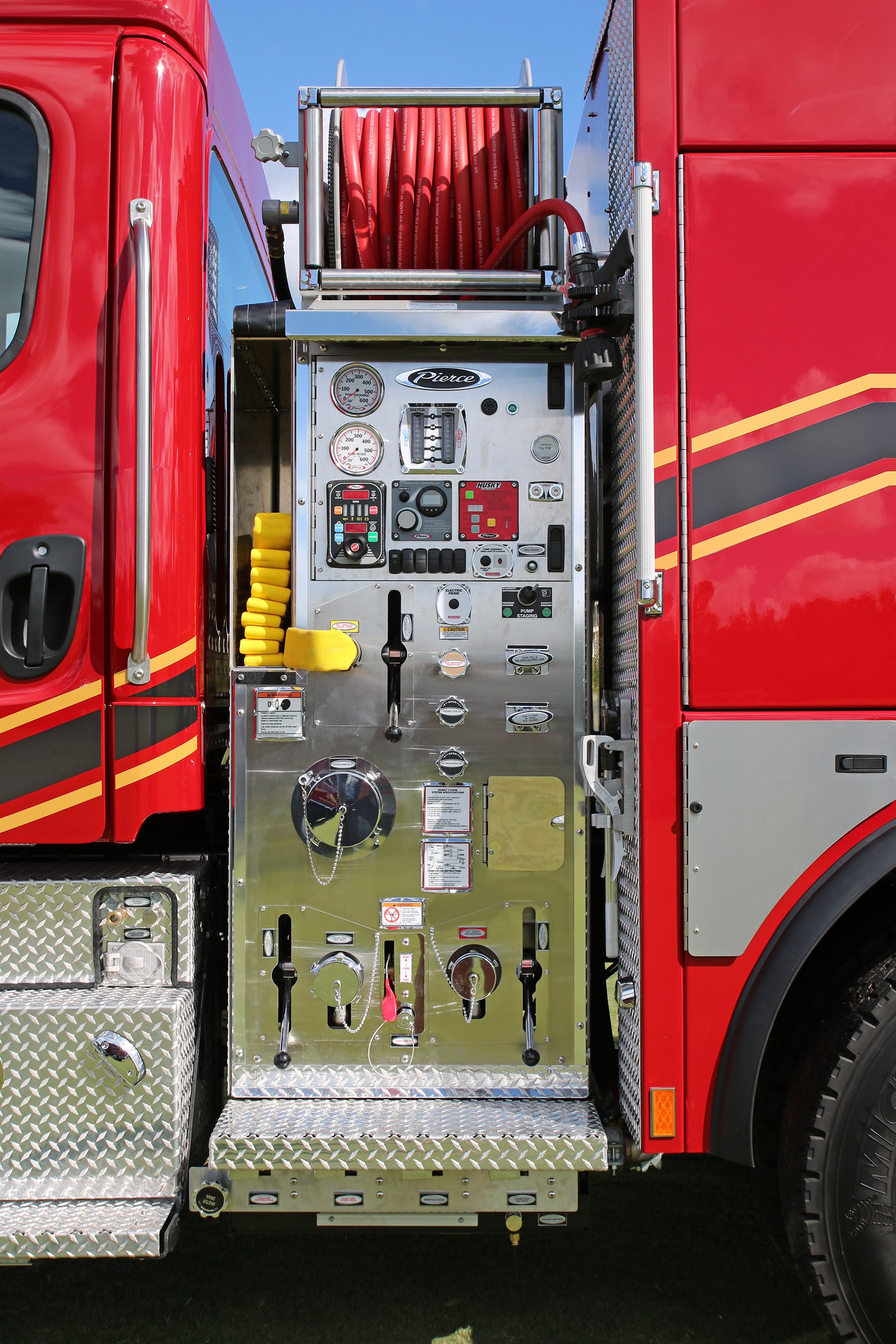

28” pump house stainless steel construction

Stainless steel plumbing

Husky™ 3 or FoamPro 1600 foam system(s)

Components positioned for ease of serviceability

Long handle tool compartment with flush door

Improved access to the pump

Ergonomic deadlay for up to 200' of 1.75" hose

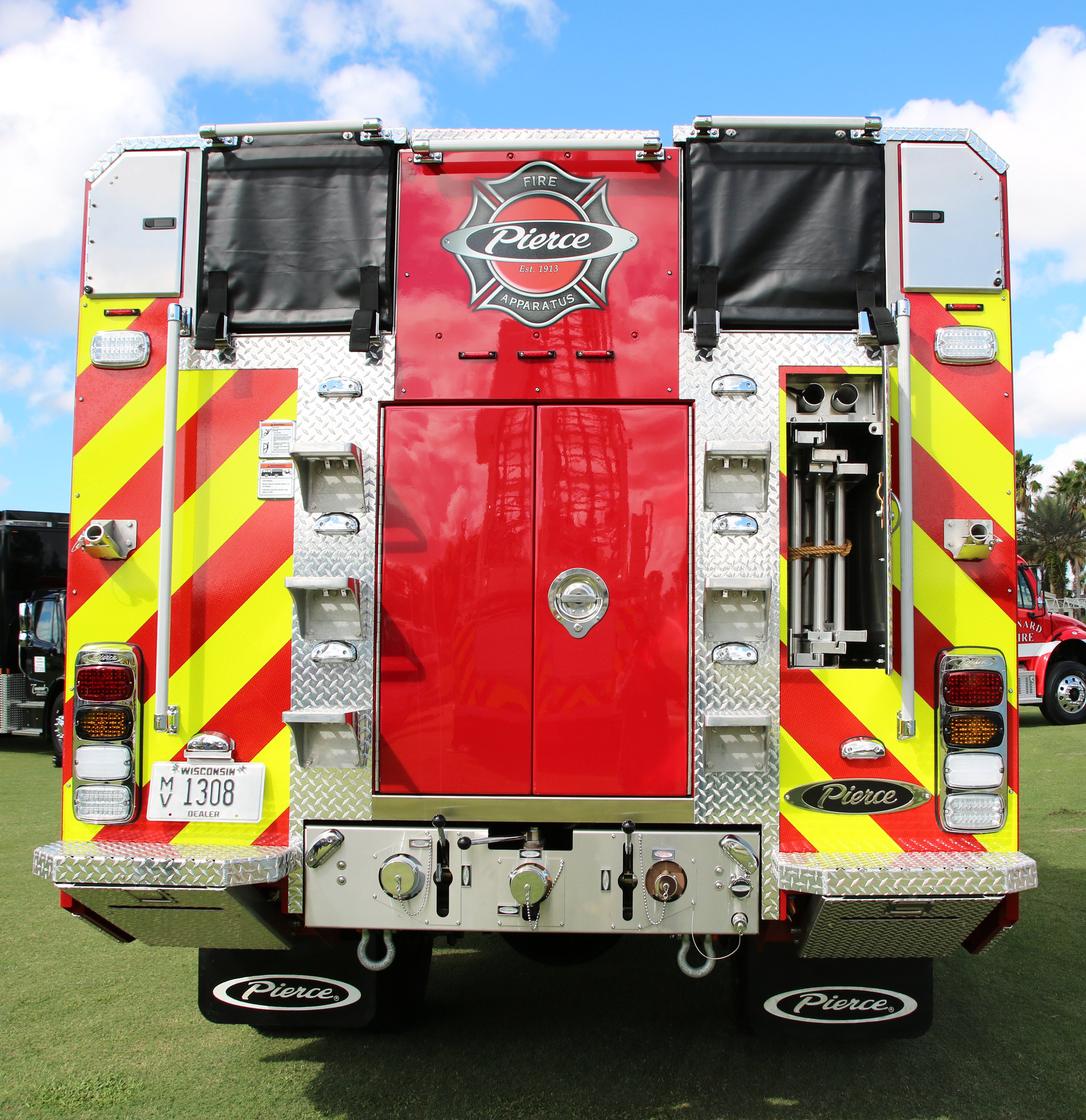

Rear Body

101” hucked stainless steel body

Hucked steel substructure

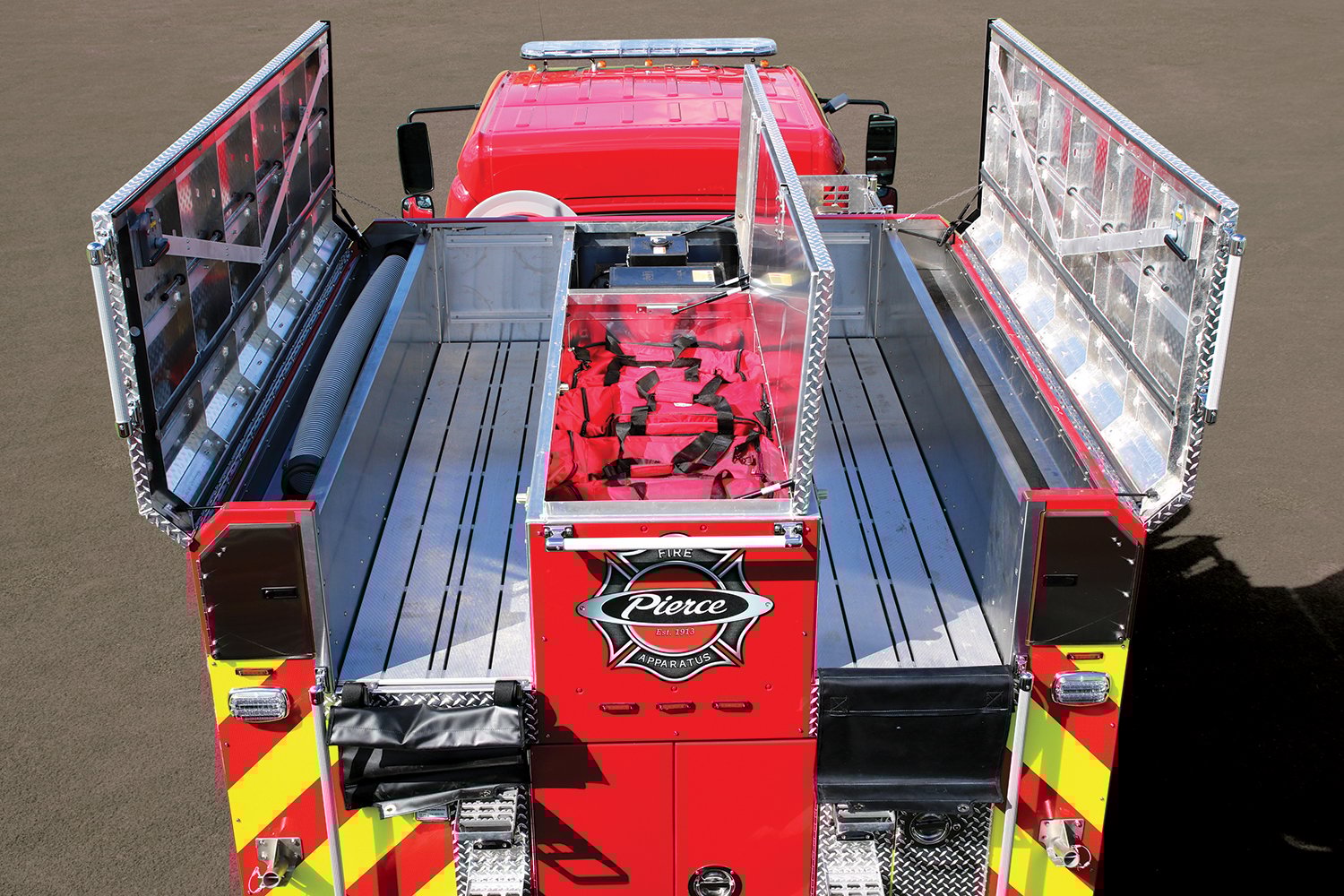

Integrated hatch compartments

Vertical ladder storage in RS body

Center dry storage hatch in hosebed

Integrated fender compartments

Vertically-hinged flush aluminum doors

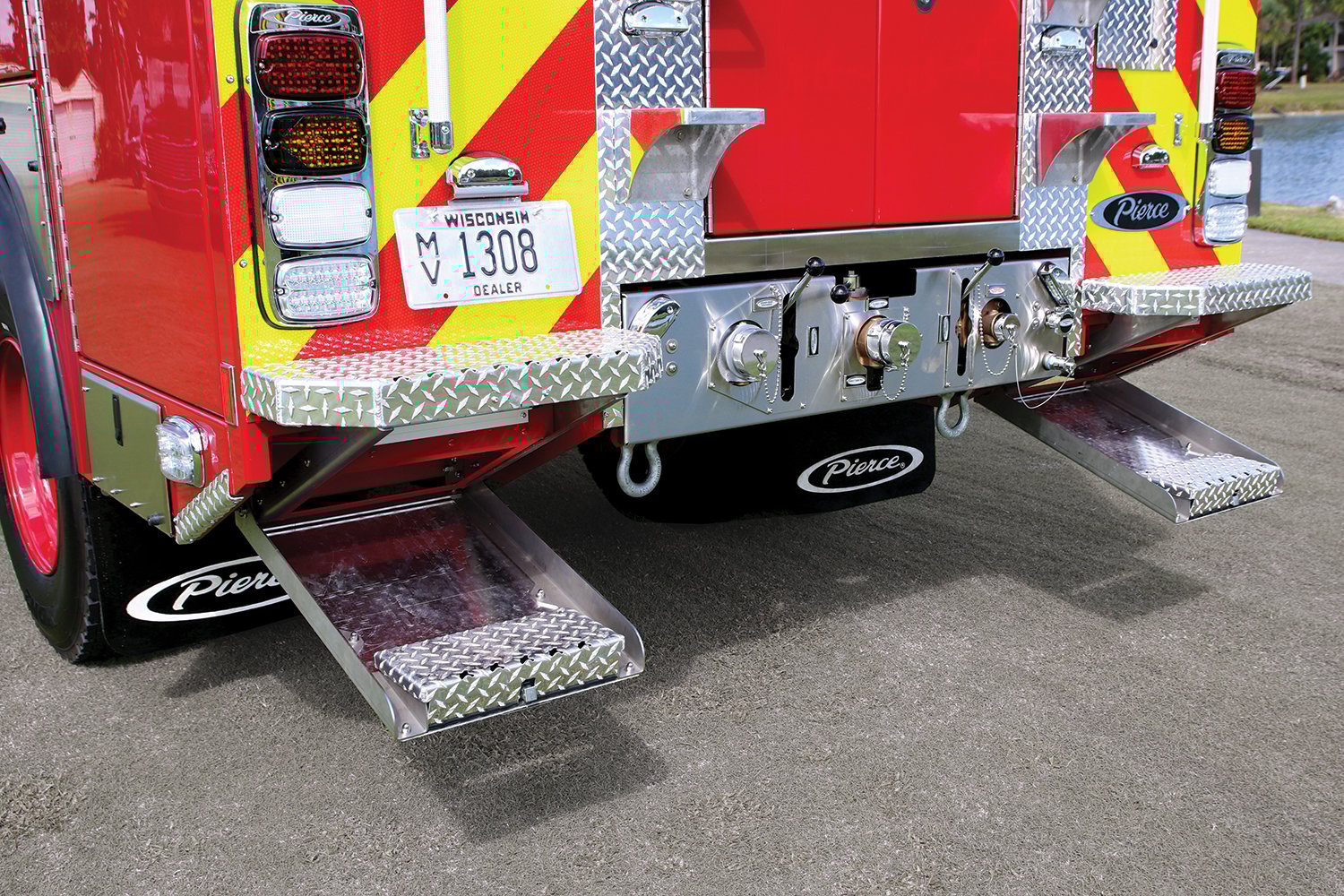

Split tailboard with swing-down steps

Self supported hosebed doors

25° angle of departure
