Husky™ 3

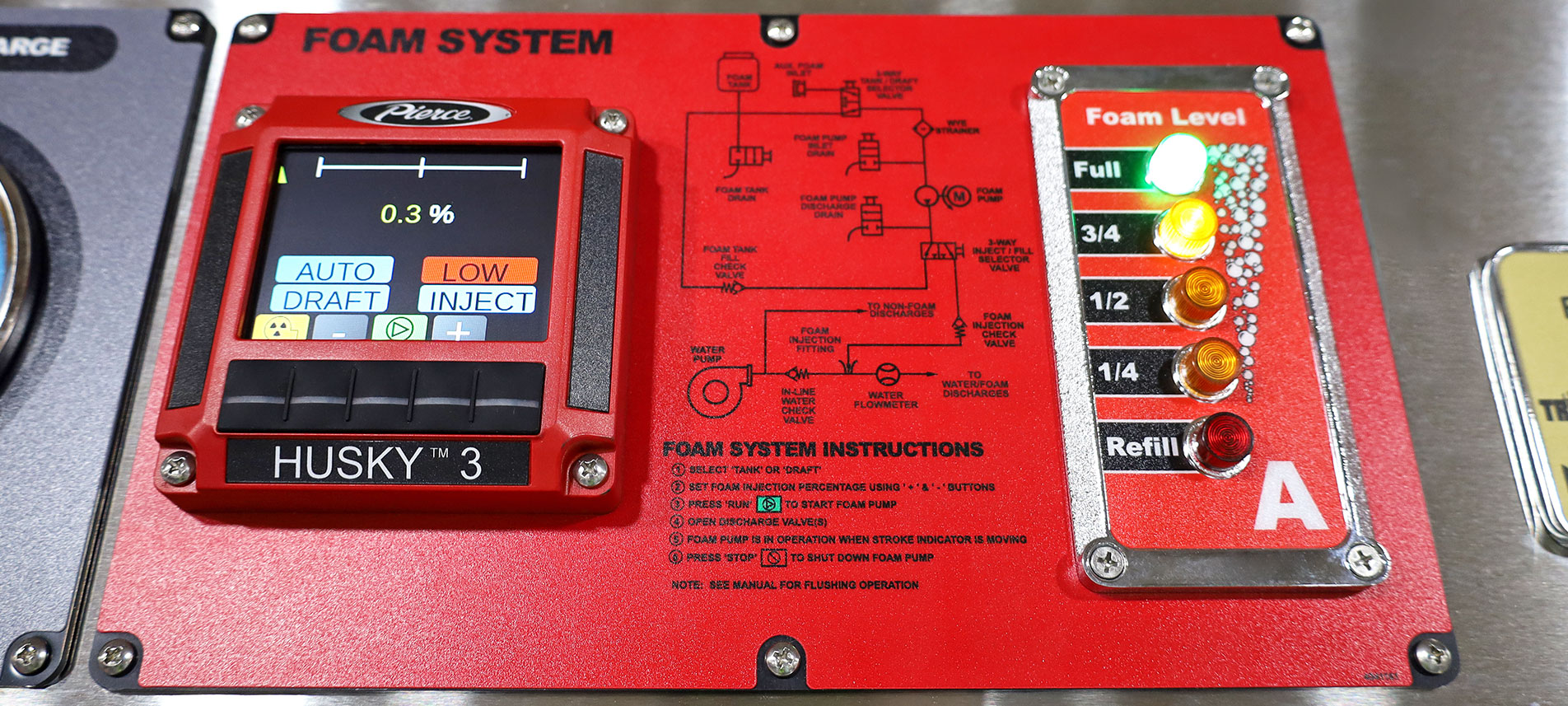

Pierce Husky™ 3 Foam System control panel on a Pierce Fire Truck.

Abolish structure fires, wildland fires, automobile and small class B spills.

HUSKY 3 BROCHURE

Specifications

Foam Concentrate % 0.3% 0.5% 1% 3%
Husky 3 Water Flow GPM (L/min) 1,000 600 300 100
  (3,785)* (2,271) (1,135) (379)



*Maximum flow depends on maximum water pump and plumbing capacities.

Features

  • Single tank system.
  • The Husky 3 is designed to pump any class A or class B foam; even high-viscosity, alcohol-resistant class B foams.
  • Electric/hydraulic powered; max electrical load is 55 amps.
  • Single point, direct injection, flow based system using digital technology to indicate pump position and flow meter.
  • 3 gpm foam pump provides capacity to handle structure, wildland and automotive fires, as well as small class B spills.
  • The system uses patented flow meter-based technology and is highly accurate over a wide range of pressures from 75 psi to 250 psi.
  • The system is easy-to-operate, with just a one-button operation required to create foam.
  • Foam percentage is easily adjustable. Class A percentages are adjustable from 0.1% - 0.9%, and Class B are adjustable from 1% - 3%.
  • One-button priming cycles the foam pump at a fixed rate, charging the foam system with concentrate.
  • The system is equipped with an auxiliary foam pick-up, which allows use of a another foam that is not stored in the foam tank and/or continued foam operation when foam is depleted out of the tank.
  • Foam tank refill system is standard; the only system on the market to fill the foam tank from the ground as standard.

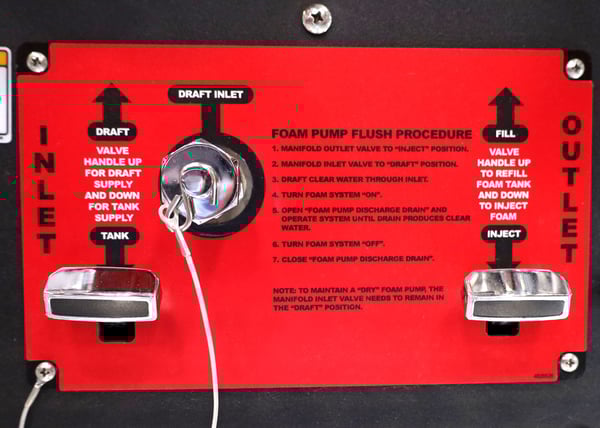

Pierce Husky™ 3 Foam System draft foam tank control panel on a Pierce Fire Truck.

Videos



Brian Van Daalwyk, Senior Product Coordinator, Fire Suppression Systems, highlights features of the Husky 3 foam system.
