Heavy-Duty Sky-Boom Water Tower

Pierce Heavy-Duty Sky-Boom Aerial Tower Header

Effortless to use, easy to maintain, & extremely lightweight, giving you superior aerial rescue performance.

SKY-BOOM BROCHURE

Overview

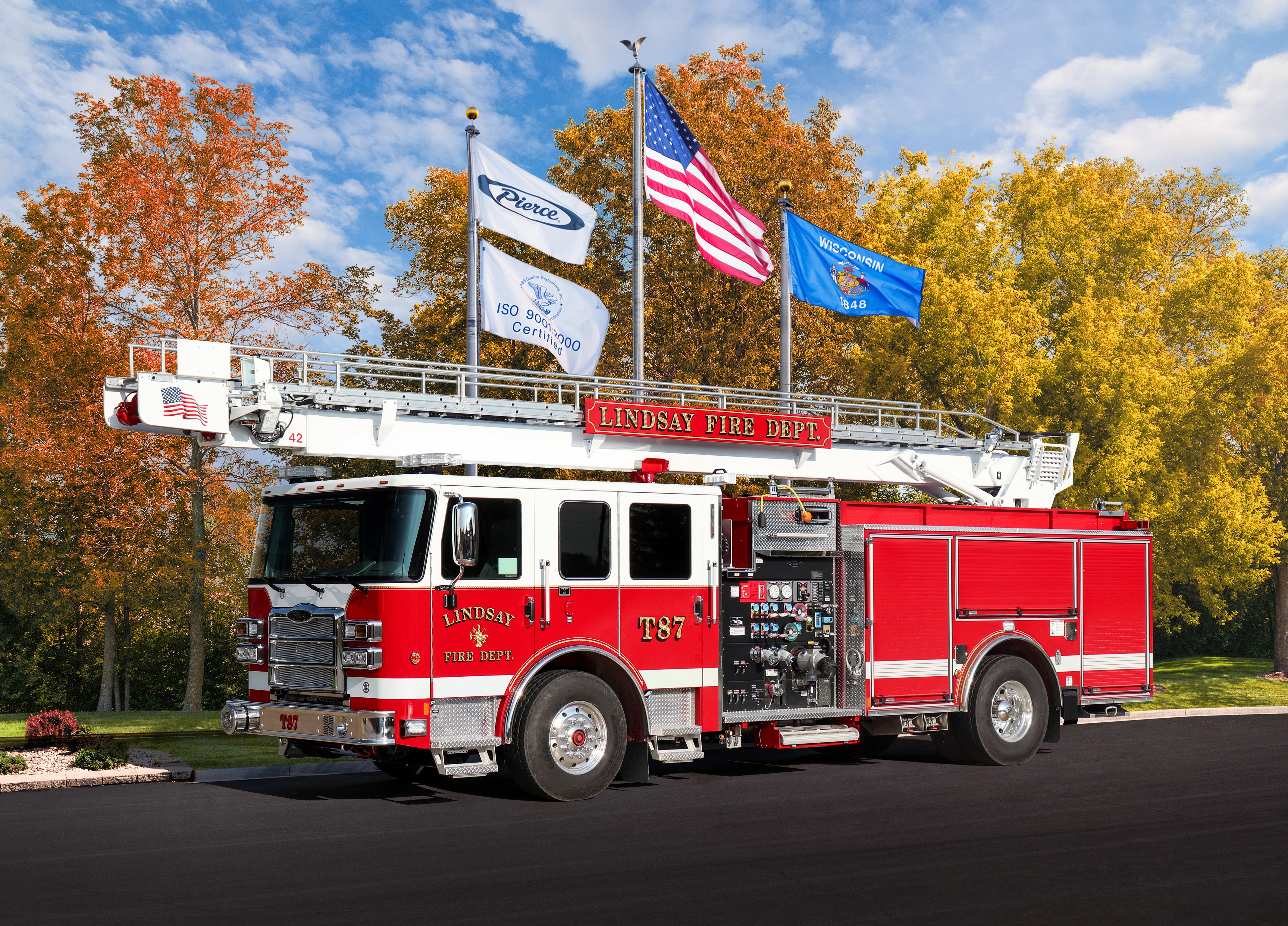

Pierce Heavy-Duty Sky-Boom Aerial Tower Extended

Pierce’s Sky-Boom is the smart choice for communities that need aerial firefighting power but also demand value for their investment. This compact, lightweight workhorse is custom built to deliver everything you expect from Pierce.

The Pierce Sky-Boom, in your choice of 55' or 61' reach (16.76m or 18.59m), delivers an unrestricted 500 lb (226.8kg) dry tip load rating and a 250 lb (113.4kg) tip load while flowing 1,000 gpm (3,785 L/m) of water. And you can travel where you’re needed with the Pierce Sky-Boom: It is the lowest of any elevated water tower apparatus with its unique fold-down handrails, resulting in an overall travel height of only 10'8" (3.25m). Fixed handrails are also available which bring the overall travel height up slightly to 11'4" (3.45m).

One set of A-style stabilizers with a 12'10" (3.91m) spread provide rock-solid strength and easy set-up. The aerial ladder features wide steps, spaced 14" (36cm) apart for safe, quick ascension. Heavy-duty and serrated rung covers provide the ultimate traction and visibility.

Specifications

Design

Custom ChassisArrow XT™, Dash® CF, Enforcer™, Impel®, Quantum®, Velocity® Rear AxleSingle or tandem
Stabilizer Spread12'10" (3.91m) Stabilizers1 set of A-style
Structural Ladder Warranty 20-yr

Performance

Flow Capacity1,000 gpm (3,785 L/m) Hosebed CapacityVaries depending on configuration
Ladder ComplementMinimum of 48' Ladder Reach55' or 61' (16.76m or 18.59m) Vertical / 45'5" or 51' (13.84m or 15.55m) Horizontal
Operating Range-5° to 85° Payload Capacity500 lb dry / 250 lb wet
Pump RangeWaterous, Hale, Darley Midship, PTO TankVaries depending on configuration
Wind & Ice RatingsUp to 20 mph (32km/hr) winds & 1/4" (.64cm) of ice

Proprietary Options

Foam Systems HERCULES™ CAFS
Husky™ Industrial
Husky™ 12
Husky™ 3
Pump PUC™
Suspension TAK-4® Independent Front Suspension
TAK-4® Independent Rear Suspension

New Deliveries

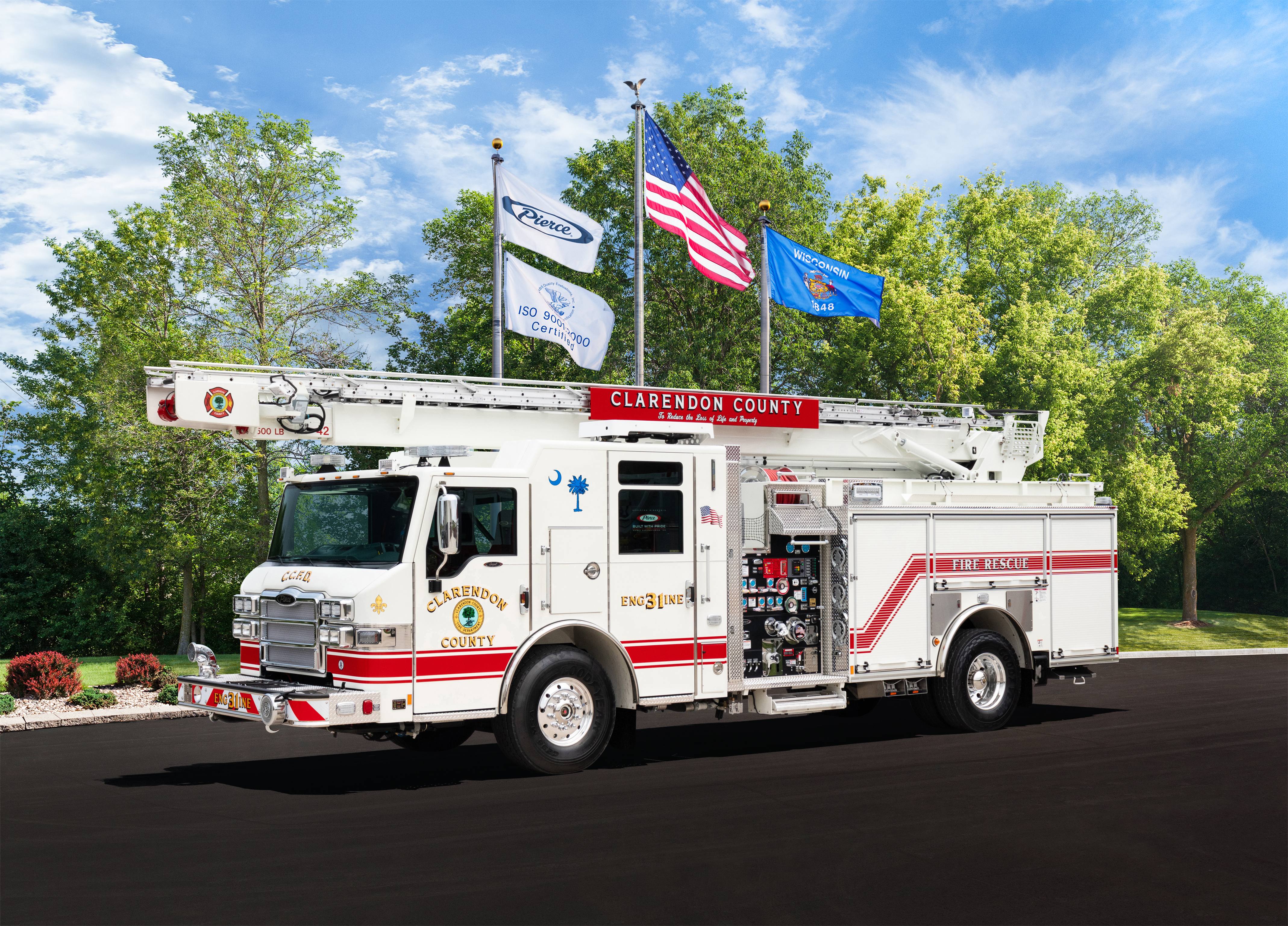

Clarendon County Fire Department - Aerial

Clarendon County Fire Department - Aerial

Delivery Date: May 31, 2019
Job Number: 32923
Sales Organization: Spartan Fire & Emergency Apparatus, Inc.

Learn More View All Deliveries
