100' Heavy-Duty Platform

Pierce 100ft Heavy-Duty Platform Header-1

A command center. A staging area. An emergency room. Engineered to multitask.



Overview

Pierce 100ft Heavy-Duty Platform Overview

Whether you’re dealing with a crowd of firefighters, loads of equipment, or even immobilized victims, things can get pretty tight. Fortunately, Pierce baskets are the roomiest in the industry. Every square inch has been designed to improve your safety and help you perform at your peak.

At either 22 square feet or 18 square feet, the Pierce 100' heavy-duty platform basket can carry a rated load capacity of 1,000 lb plus accessories. Every foot is working space. And Pierce Lyfeline™ exclusive accessories – including ladders, hoists, stokes baskets, and rappelling arms – are mounted on the front side of the basket, thus freeing space inside. Swing-in doors eliminate the need for a gate, so firefighters can quickly and easily step onto the large, 17" wide self-draining deck. The Pierce basket leveling system allows for smooth, precise leveling throughout the full range of aerial operation.

Specifications

Design

Basket18 or 22 sq ft Custom ChassisArrow XT™, Dash® CF, Quantum®, Velocity®
Rear AxleTandem Stabilizer Spread18'
Stabilizers2 sets of H-style Structural Ladder Warranty 20-yr

Performance

Flow CapacityUp to 3,000 gpm Hosebed Capacity1,000' of 5" hose
Ladder ComplementMinimum of 115' Ladder Reach100' Vertical / 93' Horizontal
Operating Range-5° to 75° Payload CapacityUp to 1,000 lb dry / 500 lb wet
Pump RangeWaterous, Hale, Darley Midship, PTO TankUp to 500 gallons
Wind & Ice RatingsUp to 50 mph winds & 1/4" of ice

Proprietary Options

Electrical Command Zone™
Foam Systems HERCULES™ CAFS
Husky™ Industrial
Husky™ 12
Husky™ 3
Pump PUC™
Suspension TAK-4® Independent Front Suspension
TAK-4® Independent Rear Suspension

New Deliveries

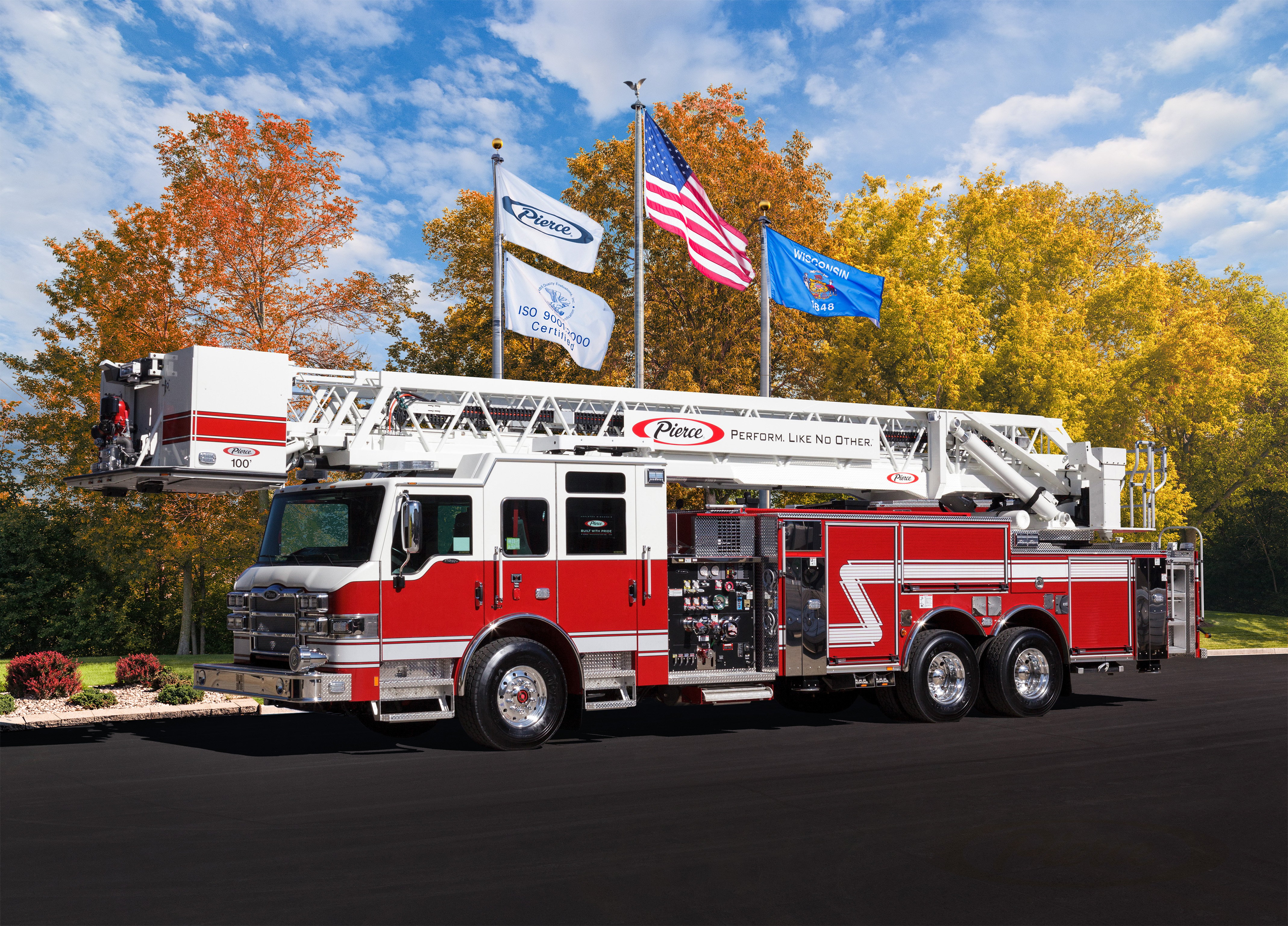

Princeton Fire Department - Aerial

Princeton Fire Department - Aerial

Delivery Date: May 31, 2017
Job Number: 30033
Sales Organization: Finley Fire Equipment Co. Inc.

Learn More View All Deliveries
