April 2018


Ascendant® 107' Tandem Axle Heavy-Duty Aerial Ladder

Gallery

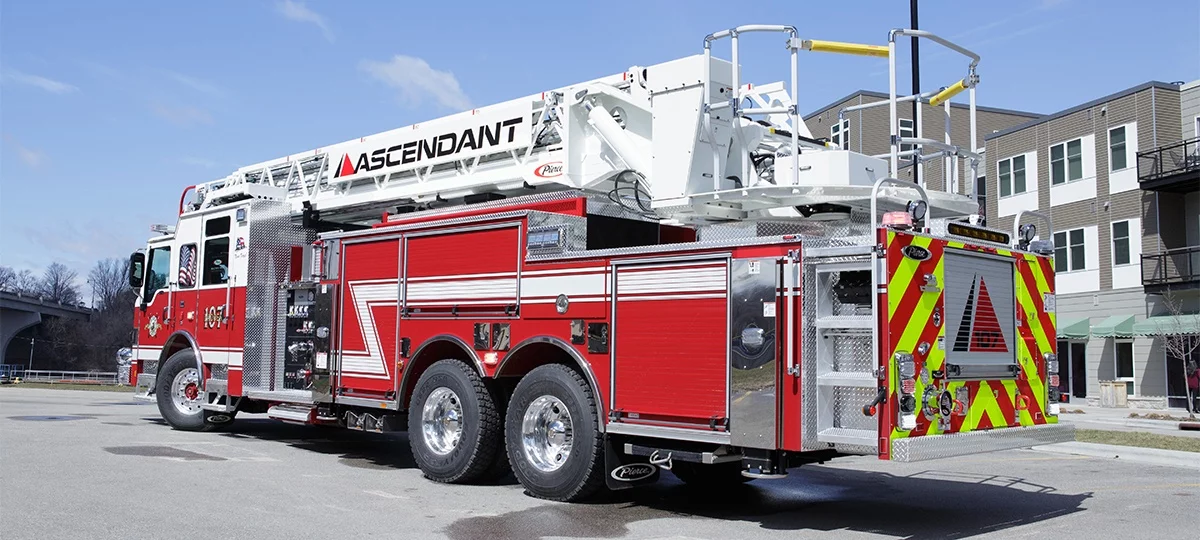

  • Pierce-Ascendant-107-tandem-axle-heavy-duty-aerial-ladder-rear
  • Pierce_ascendant-107-tandem-axle-heavy-duty-aerial-ladder-DS-compartments
  • Pierce-Ascendant-107-tandem-axle-heavy-duty-aerial-ladder-passengerside

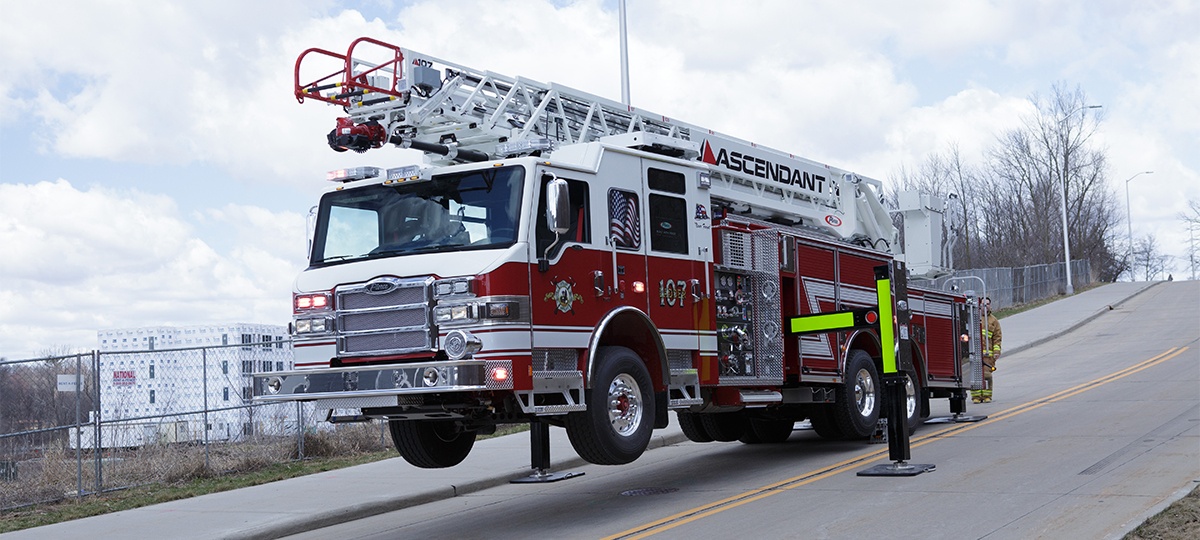

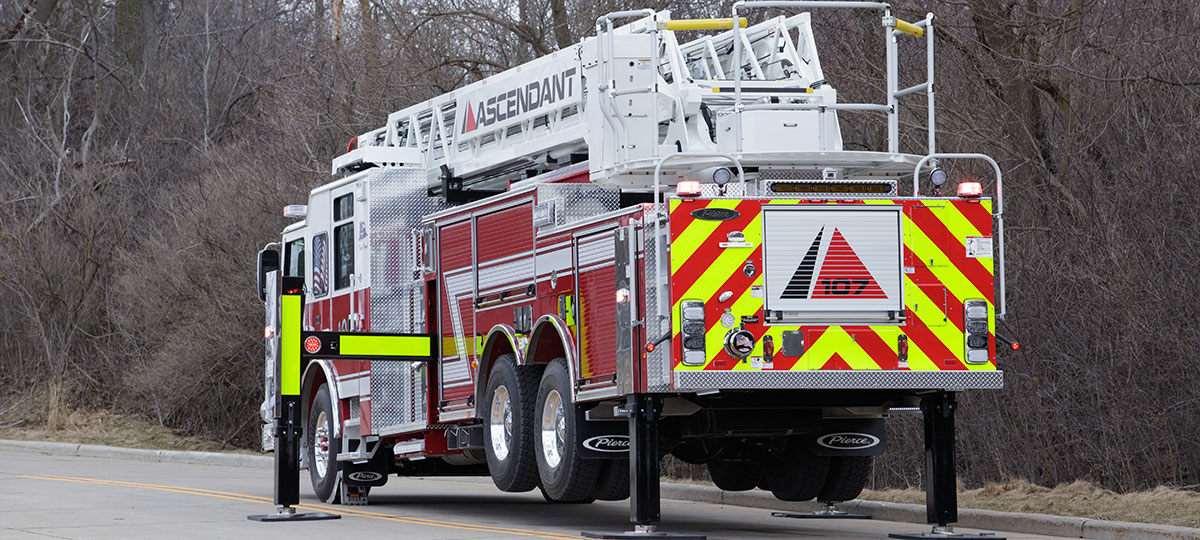

  • Pierce-Ascendant-107-tandem-axle-heavy-duty-aerial-ladder-stabilizers

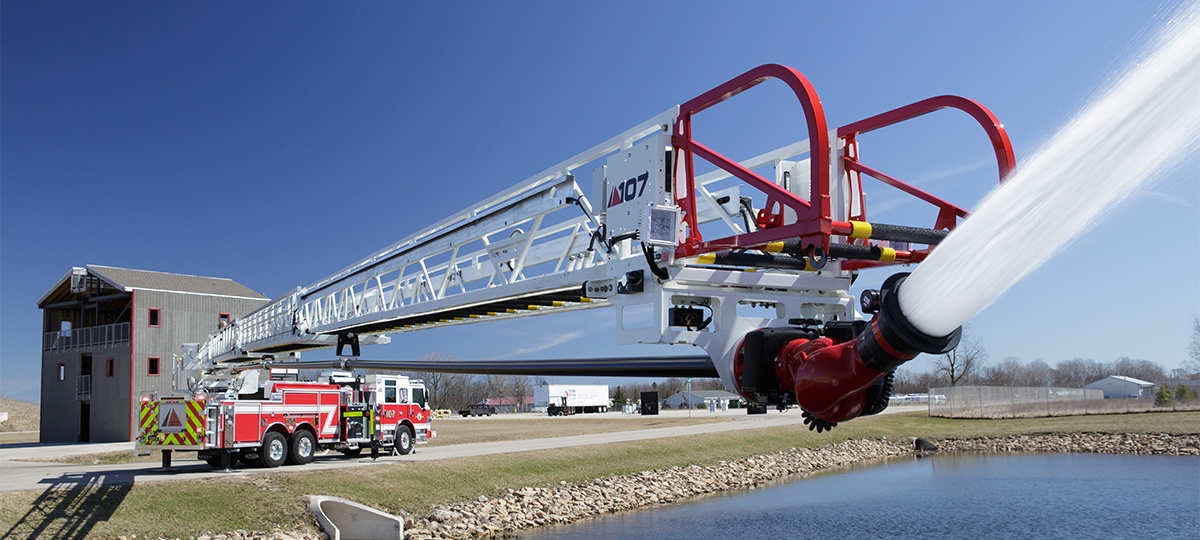

  • Pierce-Ascendant-107-tandem-axle-heavy-duty-aerial-ladder-flowing
  • Pierce-Ascendant-107-tandem-axle-heavy-duty-aerial-ladder-horizontalreach
  • Pierce-Ascendant-107-tandem-axle-heavy-duty-aerial-ladder-verticalreach

Specifications

Custom Chassis Choices

Arrow XTTM, EnforcerTM, Impel®, Quantum®, Velocity®

Body

Ascendant® 107' Tandem Axle Heavy Duty Ladder

Vertical Reach

107'

Horizontal Reach

100'

Operating Range

-10° to 77°

Payload Capacity

750 lb dry/500 lb wet (340kg dry/227kg wet)

Wind & Ice Ratings

Up to 35 mph (56 km/h) winds & 1/4" (.64cm) of ice



Flow Capacity

1,500 gpm

Stabilizers

1 set of H-style & 2 downriggers

Stabilizer Spread

16'

Rear Axle

Single

Tank

Up to 750 gallons

Pump Range

Waterous, Hale, Darley Midship, PTO

PUC™ Availability

Yes

Hosebed Capacity

1,000' (304.8m) of 5" (12.7cm)

Ladder Complement

Minimum of 115'

Pierce Ascendant Heavy Duty Ladder

“The optimized design of the Ascendant ladder integrated onto a tandem axle chassis results in a significantly lighter vehicle. We can provide you with a rear axle rating of only 44,000 lbs. The result is lower cost of ownership with less brake and tire wear, shorter stopping distances, and better performance from your drivetrain.”

CHAD PIETROWSKI,
SENIOR PRINCIPAL ENGINEER- AERIAL PRODUCTS, PIERCE MANUFACTURING

Exclusive Pierce Features
