Ascendant® 110' Heavy-Duty Aerial Platform

Pierce Ascendant 110' Heavy-Duty Aerial Platform Fire Truck

Ride to new heights.

Maneuverable, first out quint with full rescue capabilities.

Overview

We’ve taken the Ascendant single rear axle quint configuration and made it even better with the addition of a platform basket. Imagine that… for those of you who would rather ride than climb or for those of you in weight restrictive states who could never even consider a heavy, tandem axle aerial platform – the Ascendant 110' Heavy-Duty Aerial Platform is your solution!

This configuration will provide you 110' (33.5m) of vertical reach and 90' (27.4m) of horizontal reach without compromising on water capacity, performance or safety. You’ll have a maneuverable, first out quint with full rescue capabilities.

The Ascendant platform includes a 100,000 psi high-strength steel ladder with a fully NFPA compliant, ergonomically designed 3-person basket. The Ascendant platform is rated to a 35 mph (56 km/h) wind and ¼" (0.64cm) of ice load. It can accommodate 100 lb (45.4kg) of additional equipment and flow 1,250 gpm (4,732 L/m) from a single monitor located at the end of the fly section.

For those of you that want more than just a ladder yet desire a smaller, lighter weight platform basket with lower acquisition costs and less cost of ownership – the Ascendant platform is ideal.

The Ascendant 110' Heavy-Duty Aerial Platform is available on a wide range of Pierce custom chassis with either a single rear axle or a tandem rear axle to meet your department’s needs.

Specifications

Features

Platform control console

Platform and monitor controls are simplified, intuitive and ergonomically positioned for ease of use during operation.

Fully NFPA compliant ergonomically designed basket

Comfortably fit 3 firefighters inside of the ergonomically designed heavy-duty steel platform.

Easy maneuverability and positioning

The platform features dual swing-in doors. The extended front floor and angled corners provide easy maneuverability and positioning.

Load More

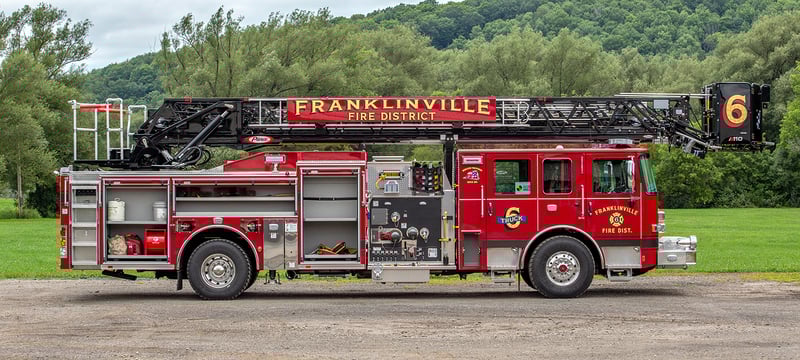

Compartments

Compartment space varies, ranging from 144 cubic feet to 306 cubic feet depending upon the body style selected.

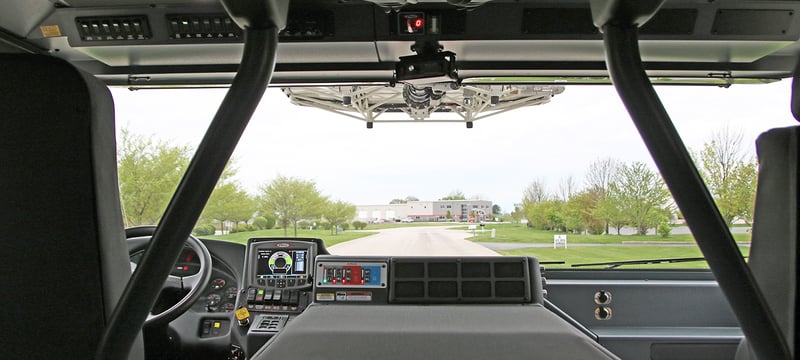

Exceptional visibility

Even with the platform stowed, driver and officer visibility is not impeded. Sightlines through the windshield are unobstructed.

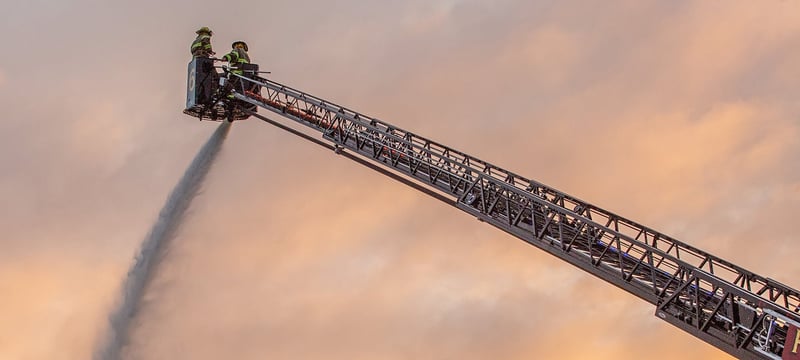

Fire suppression

The Ascendant platform is capable of flowing 1,250 gallons per minute through the single monitor located at the end of the fly section.

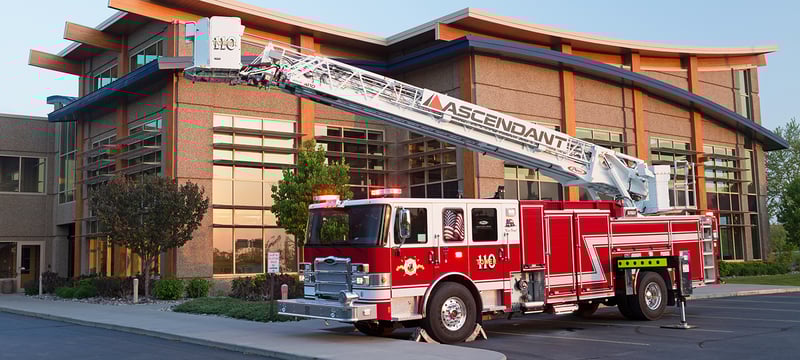

Greater reach

The Ascendant platform will provide you with 110’ of vertical reach and 90’ of horizontal reach without compromising on water capacity, performance or safety.

8 ft extension for ground access

Extend the platform a mere 8' to easily access the basket from the ground.

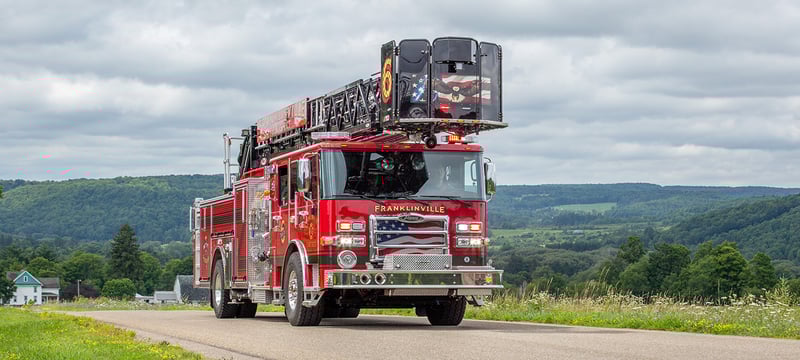

Improved corrosion resistance

E-coated pedestal & torque box on the single rear axle configuration. E-coated torque box & stabilizers on the tandem rear axle configuration.

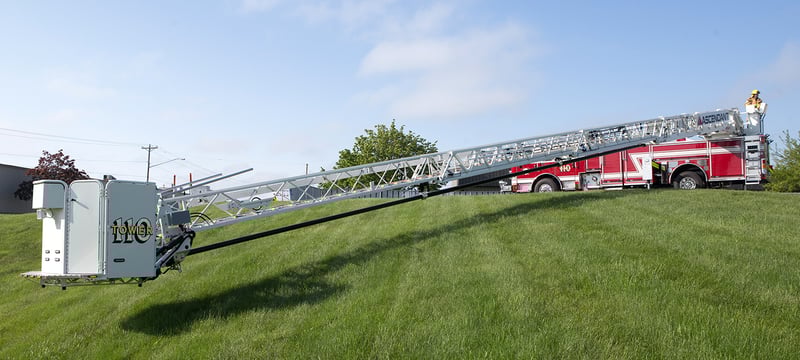

-10⁰ to 77⁰ operational range

The Ascendant platform has an impressive operational range of -10⁰ below ground level to 77⁰ above ground level.

Setup on a decline

The Ascendant is designed to perform at full capacity on a 9% downhill slope while meeting all NFPA stability requirements.

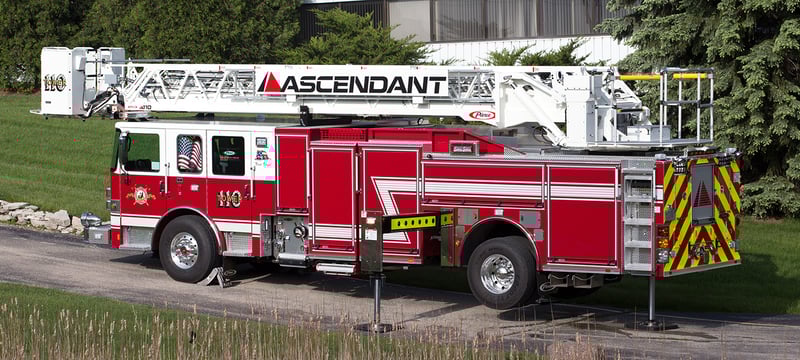

Setup on an incline

The Ascendant is designed to perform at full capacity on a 12% uphill slope while meeting all NFPA stability requirements.

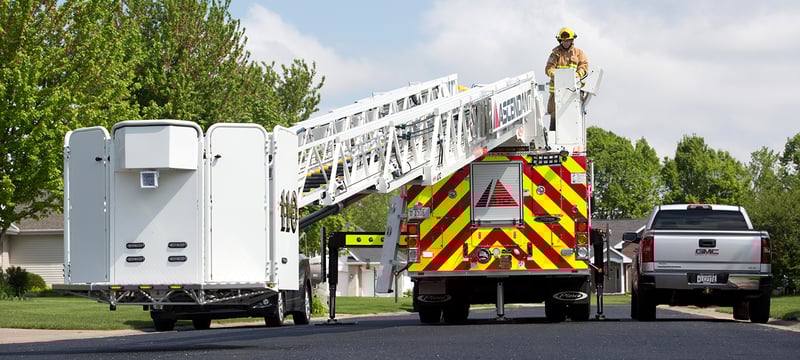

Single rear axle stabilizers

Featuring only 1 set of H-style outriggers and 1 downrigger, set-up is fast and easy. Tight spot? The vehicle can be short-jacked in those situations.

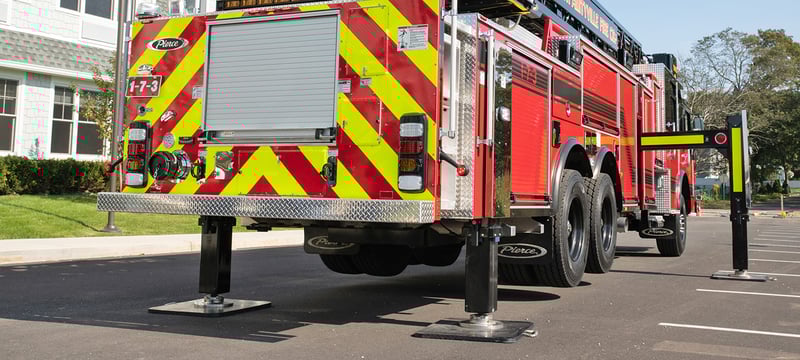

Tandem rear axle stabilizers

On the Ascendant tandem axle configuration there are four stabilizers, but only the front stabilizers are H-style outriggers – the rear two stabilizers are downriggers that reduce the set-up footprint.

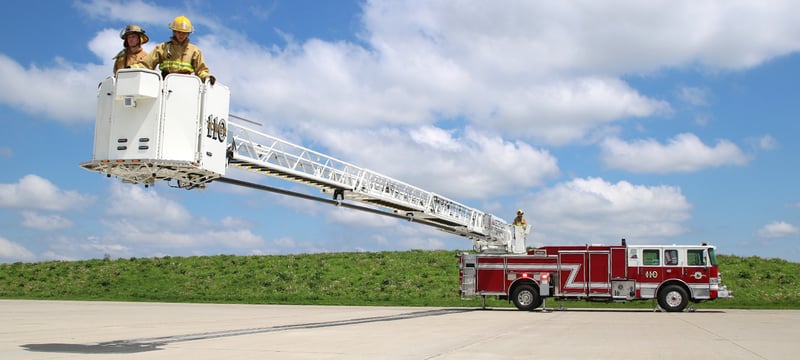

Smaller footprint with smoother and quicker deployment speed

The patented Ascendant technologies make it easier to setup and position the apparatus, and provide smoother and quicker platform deployment speed.

Aerial Platform

For those of you that want more than just a ladder yet desire a smaller, lighter weight platform basket with lower acquisition costs and less cost of ownership – the Ascendant platform is ideal for you.
  • Heavy-duty high strength steel
  • Innovative gusset design
  • 3-person ergonomically designed platform basket
  • Single monitor at fly section
  • Dual swing-in doors
  • Below grade operation (-10⁰)
  • Multiplexed
  • 100 lb additional equipment allowance at tip
  • Smoother and quicker deployment speeds
Pierce Ascendant 110ft Heavy-Duty Aerial Platform - 3-person basket
110 Ascendant Platform Monitor Movement

Single Monitor

In order to maintain the impressive performance characteristics inherent to the Ascendant, the monitor weight and location have also been optimized resulting in a single monitor at the end of the fly section. The monitor can flow unrestricted both horizontally and even backwards.

Body Styles

  • Quint – available with a PUC™ pump
  • Texas Chute Out – for departments desiring a side-stacked hosebed; available with a PUC™ pump
  • No Pump No Tank – a true truck company style
Pierce Ascendant 110ft Heavy-Duty Aerial Platform - Body Styles
