Dash® CF

Pierce Dash CF Custom Chassis - Header

Be situation ready.

DASH CF BROCHURE

Overview

Your world revolves around constant preparation. The Pierce Dash CF is the solution. The Dash CF apparatus features the PUC platform and cab forward configuration for more space up front and enhanced visibility for all firefighters.

The result: Drastically improved space for both driver and officer, lower step heights, more storage options, a large windshield, and drop daylight windows for better visibility and scene assessment.

Dash CF 360° Interior Tour

Pierce Dash CF Custom Chassis

Visibility & Space

  • Cab forward design features no upfront engine tunnel, seats moved inboard, lower console height, & forward roof design for dramatically more space for both the driver & officer.
  • A single-piece, bonded, panoramic windshield provides unmatched visibility.
  • Great wiper coverage with no center post.

Ergonomics

  • The steps are lower to the ground & offset to function like a stair step, making it easier for firefighters to enter & exit the cab.
  • Exterior door handles are functionally designed for a firefighter's gloved hand.
  • The all-metal console & metal overhead switch panel are ergonomically designed for maximum convenience & comfort, keeping all of the gauges & switches within easy reach of the driver.

Serviceability

  • Checks, fills, power distribution, & centralized filter locations provide access while standing with boots on the ground for convenient service & reduced maintenance time.
  • Built-in wire raceways throughout the cab reduce the chance of wire chafing & make it easier to service or add cab harnesses & wiring.
  • A remote mounted hydraulic cooling system keeps the noise out of the cab & service at the forefront.

Maneuverabilty

  • Built on the PUC platform with a shorter wheelbase for better maneuverability.
  • Massive 13.38" 120 psi steel frame rails for superior handling & reduced frame deflection.

Specifications

Design

Cab DimensionsLength 70" or 80" / Width 96" Cab Roof StyleRaised (11")
DoorsBarrier or full height Electrical SystemCommand Zone™
Frame Rail13-3/8" Front Axle SuspensionTAK-4®
Frontal Air BagsDefault Rear Axle SuspensionLeaf, rubber, air, TAK-4®, or TAK-4 T3™; single or tandem
Seating Capacity7 Side Roll ProtectionDefault

Performance

Alternator270 - 430 amp Cramp Angle (maximum)45°
EngineCummins L9 or Detroit Diesel DD13 Engine Horsepower370 – 525 hp
Front GAWR (maximum)24,000 lb Rear GAWR (maximum)60,000 lb
TransmissionAllison 3,000 EVS, 4,000 EVS, or 4,500 EVS

Proprietary Options

Electrical Command Zone™
Pump PUC™
Suspension TAK-4® Independent Front Suspension
TAK-4® Independent Rear Suspension

Exterior Gallery

Large B-pillar windows

Large B-Pillar Windows aid in checking blind spots and advancing scene assessment.

Lower step height

The steps are lower to the ground and offset to function like a stair step, making it easier for firefighters to enter and exit the cab.

Daylight windows

The front doors feature daylight windows that open visibility to the sides of the vehicle.

Large single-bonded wrap-around windshield

A single-piece, bonded, panoramic windshield provides unmatched visibility.

Two-blade wiper system

Greater wiper coverage with no center post.

Interior Gallery

New Deliveries

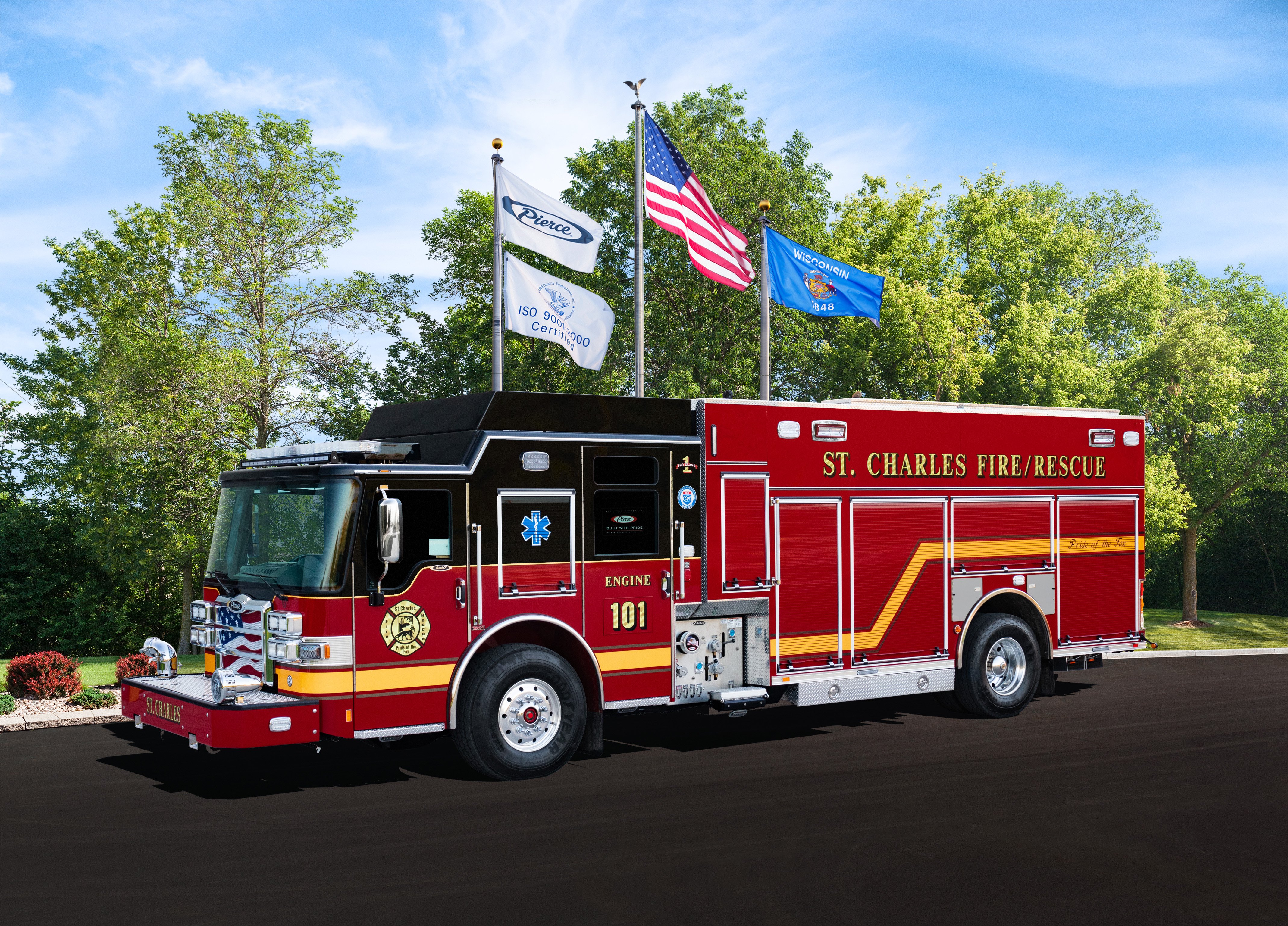

St. Charles Fire Department - Pumper

St. Charles Fire Department - Pumper

Delivery Date: September 23, 2019
Job Number: 33628
Sales Organization: Global Emergency Products
