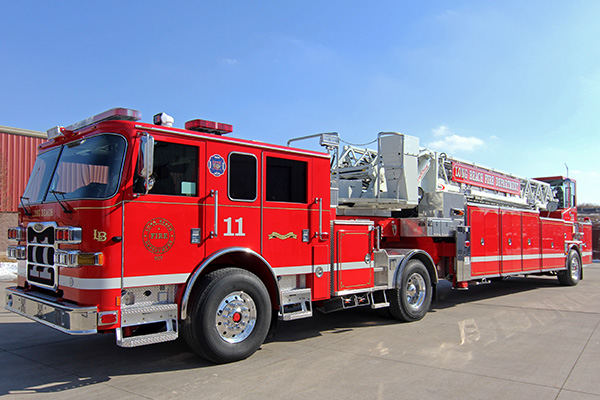

Ascendant^® 102' Heavy-Duty Tiller Aerial Ladder

Specifications

Flow Capacity

1,000 gpm with ladder pipe only

Payload Capacity

750 lb dry / 500 lb wet

Ladder Reach

102' Vertical / 95' Horizontal

Design

Custom Chassis	Enforcer™, Velocity®	Rear Axle	Single or tandem
Stabilizer Spread	17'	Stabilizers	1 set of H-style
Structural Ladder Warranty	20-yr

Performance

Flow Capacity	1,000 gpm with ladder pipe only	Hosebed Capacity	1,000' of 5"
Ladder Complement	Up to 250' (depending on configuration)	Ladder Reach	102' Vertical / 95' Horizontal
Operating Range	-10° to 77°	Payload Capacity	750 lb dry / 500 lb wet
Pump Range	Waterous, Hale, Darley Midship, PTO	Tank	Up to 300 gallons
Wind or Ice Ratings	Up to 35 mph winds and 1/4" of ice

Proprietary Options

Electrical	Command Zone™	Foam Systems	HERCULES™ CAFS Husky™ 12 Husky™ 3
Pump	PUC™	Suspension	TAK-4® Independent Front Suspension
