105' Heavy-Duty Ladder

Pierce 105 HD Ladder - Header

Climb with confidence.

105' HEAVY-DUTY LADDER BROCHURE

Overview

Pierce 105 HD Ladder - Overview-1

Pierce 105' heavy-duty ladders deliver a rated load capacity of up to 750 lb in winds up to 50 mph with a 100 lb allowance of additional firefighting equipment at the ladder tip. They can carry that load while flowing up to 1,000 gpm. The ladder isn’t just stable at the top; it’s strong throughout, able to take heavy loads over the length of the structure.

Climb Pierce’s 105' heavy-duty ladder with confidence as we’ve routed all wires inside sealed base rails. All walking areas are cleared of hoses and harnesses, and ladder rungs are sheathed in aggressive, composite rung covers.

Specifications

Design

Custom ChassisArrow XT™, Dash® CF, Enforcer™, Impel®, Quantum®, Velocity® Rear AxleTandem
Stabilizer SpreadUp to 16' Stabilizers2 sets of H-style
Structural Ladder Warranty 20-yr

Performance

Flow Capacity1,000 gpm Hosebed Capacity1,000' of 5" hose
Ladder ComplementMinimum of 115' Ladder Reach105' Vertical / 100' Horizontal
Operating Range-8° to 75° Payload CapacityUp to 750 lb dry / 500 lb wet
Pump RangeWaterous, Hale, Darley Midship, PTO TankUp to 750 gallons
Wind & Ice RatingsUp to 50 mph winds & 1/4" of ice

Proprietary Options

Foam Systems HERCULES™ CAFS
Husky™ Industrial
Husky™ 12
Husky™ 3
Pump PUC™
Suspension TAK-4® Independent Front Suspension
TAK-4® Independent Rear Suspension

New Deliveries

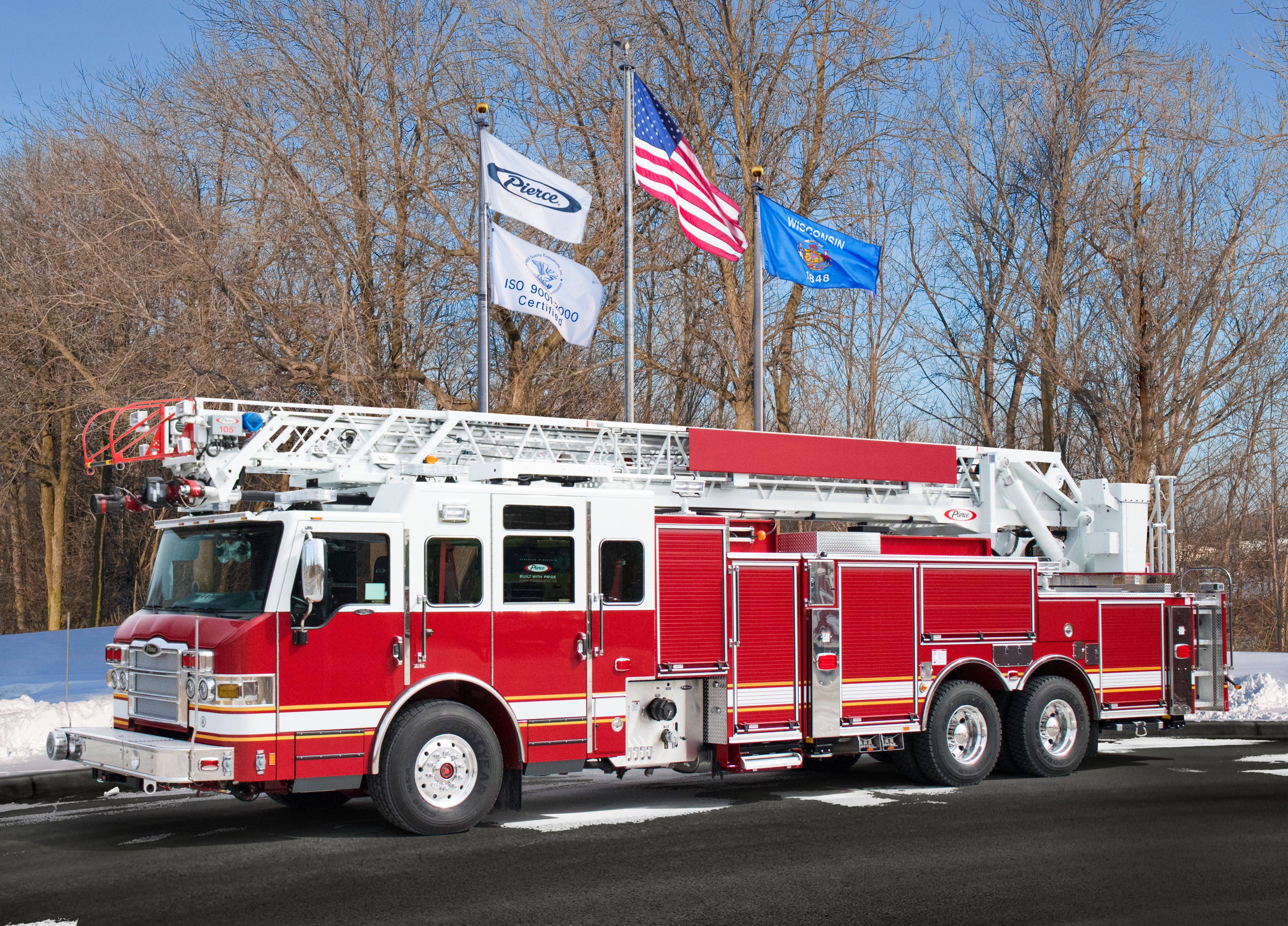

Flourtown Fire Company - Aerial

Flourtown Fire Company - Aerial

Delivery Date: February 22, 2018
Job Number: 30991
Sales Organization: Glick Fire Equipment Co.

Learn More View All Deliveries
